A corner bathroom vanity is a smart way to maximize space in small or irregularly shaped bathrooms. These vanities fit into the corner of two walls, freeing up floor space and improving traffic flow. They are especially useful in powder rooms or guest bathrooms where space is limited. However, proper planning is key to ensuring a successful installation. Here’s what you need to know:
- Measurements Matter: Ensure accurate measurements of wall lengths, corner angles, and clearances. Building codes require at least 21 inches of space in front of the vanity and 15 inches between the vanity edge and the toilet’s centerline.
- Types of Corner Vanities:
- Triangle (Diagonal): Compact, ideal for small spaces but limited in storage.
- L-Shaped: Offers more counter and storage space; better for larger bathrooms.
- Wall-Mounted (Floating): Creates an open feel and is easier to clean but has less storage.
- Storage Tips: Use pull-out organizers, stackable shelves, and vertical storage solutions to make the most of limited cabinet space.
- Material Choices: Opt for durable materials like waterproof plywood, quartz countertops, or stainless steel to withstand humidity and wear.
- Installation: Check plumbing alignment and consider professional help for complex setups like wall-mounted vanities.
How to Install an Corner Bathroom Vanity Unit
How to Measure Your Space for a Corner Vanity
Getting the measurements right is the first step to a smooth vanity installation. It can save you from costly mistakes or frustrating fitting issues. Start with a tape measure and a level to make sure the corner forms a true 90° angle. In older homes, walls might not be perfectly square, which could lead to gaps or alignment problems if overlooked [3].
Measure outward from the corner along both walls to determine the available space [3]. Be sure to measure from the finished floor (not the subfloor) to the ceiling and note the positions of windows, light switches, and electrical outlets [5]. Next, measure the depth from the corner to the nearest obstruction, such as a toilet, shower, or door. This will help you figure out the maximum depth your vanity can have without blocking movement.
Use a pencil to mark the vanity’s footprint directly on the floor and walls to visualize how it will fit [3]. Don’t forget to include a 1–1.5 inch countertop overhang when planning your layout [4].
Required Measurements and Tools
To get the complete picture, measure everything thoroughly. Here’s what to record:
- The length of both walls from the corner to their endpoints.
- Floor-to-ceiling height.
- Depth from the corner to any obstructions.
- Distance from the corner to plumbing lines for proper sink and drain alignment [3][5].
Keep in mind building codes: allow at least 15 inches of clearance from the toilet’s center to the vanity’s edge and ensure at least 18 inches of open floor space in front of the vanity for ease of use [5]. Standard vanity depths are around 21 inches, but compact models can be as shallow as 16–18 inches for smaller bathrooms [5].
| Measurement Type | Standard Dimension | Purpose |
|---|---|---|
| Front Clearance | 18–21 inches | Walking and standing space [5] |
| Toilet Clearance | 15 inches (from center) | Code compliance and comfort [5] |
| Hinged Door Swing | 20–30 inches | Full access to cabinet interior [3] |
| Standard Depth | 20–24 inches | Storage and floor flow [5] |
| Countertop Overhang | 1–1.5 inches | Protect cabinet faces from spills [4] |
"Double-checking your measurements before purchasing will save you time and prevent unnecessary returns or exchanges." – ACE DECOR Bathroom [3]
Planning for Plumbing and Access
Take note of where your water supply lines and drainpipes are located. If you’re installing a wall-mounted vanity, leave a small gap behind it for air circulation [3][5]. Misaligned plumbing can lead to costly adjustments, so make sure the vanity design accommodates the existing setup. Also, check that drawers or internal storage won’t block access to plumbing, as you’ll need it for any future repairs.
Common Measurement Errors to Avoid
Be mindful of potential collisions. Make sure the bathroom door, shower door, and vanity cabinet doors can all open fully without hitting other fixtures [6]. Also, measure both the cabinet base and the countertop – ignoring the extra width and depth of the countertop could cause it to overlap with nearby trim or fixtures [8].
Don’t assume your corner is perfectly square. Many older homes have uneven corners, which may require filler strips to close gaps [1]. Finally, check that the vanity won’t block electrical outlets or switches. Moving these can add unnecessary expense and complexity to your project [5].
Once you’ve gathered all your measurements, you’ll be ready to explore vanity designs that fit your space perfectly.

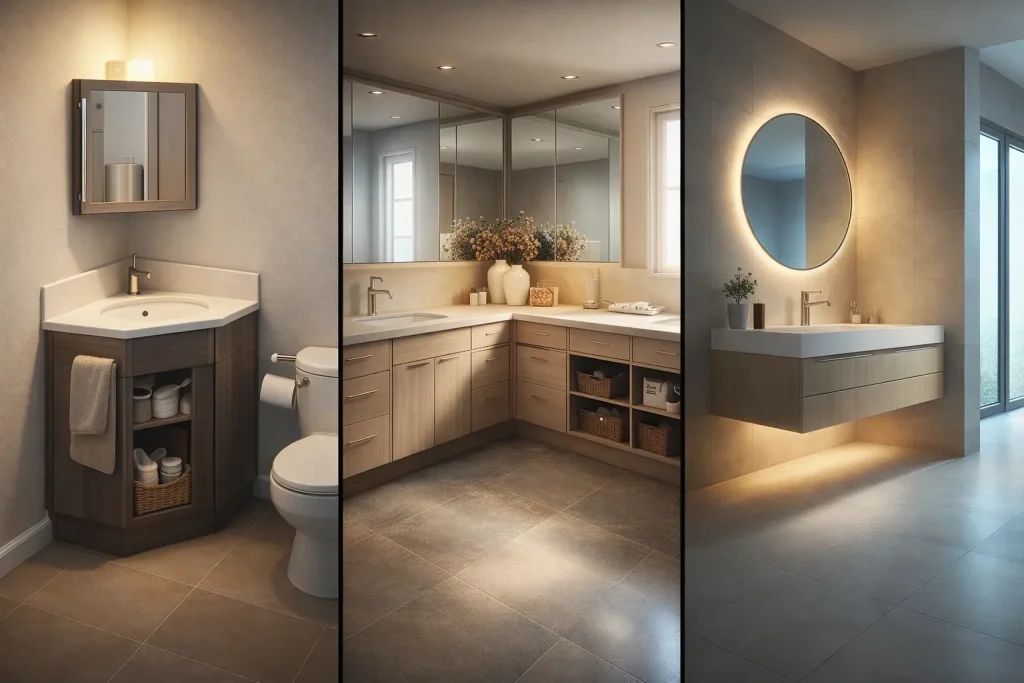

Corner Bathroom Vanity Design Types
Planning a bathroom renovation? Start with experienced remodeling professionals.
Once you’ve got your measurements ready, it’s time to decide which corner vanity style works best for your bathroom. The three primary designs – triangle, L-shaped, and wall-mounted – each cater to different needs and spaces. Here’s a closer look at what each option offers.
Triangle (Diagonal) Corner Vanities
If you’re dealing with a small or oddly-shaped bathroom, triangle (or diagonal) corner vanities are a great choice. These compact units fit neatly into a corner with an angled front, making them perfect for tight layouts or irregular dimensions [2]. For bathrooms where space is at a premium, rounded or curved versions can help minimize sharp edges and avoid those dreaded hip bumps in narrow areas.
While triangle vanities don’t offer much in terms of counter space, they shine when floor space is your top priority. They’re ideal for powder rooms or any situation where storage takes a backseat to saving square footage.
L-Shaped Corner Vanities
L-shaped vanities are all about maximizing functionality. Designed to run along two walls, these vanities provide extended counter space and ample storage, making them a solid option for medium to large bathrooms. They’re especially useful if you need room for multiple users or want a dedicated space for tasks like applying makeup or tackling a skincare routine.
"An L shaped bathroom vanity is a smart solution that turns unused corners into functional, stylish focal points."
– ACE DECOR Bathroom
One of their standout perks is storage flexibility. With deep drawers for bulky items like hair dryers and shallow ones for smaller essentials, you can organize with ease. For a softer look and better flow, some designs replace sharp 90-degree corners with an angled transition. Just keep in mind that these larger pieces require precise measurements of both walls and the corner angle to avoid installation headaches.
Wall-Mounted Corner Vanities
Wall-mounted (or floating) vanities are becoming increasingly popular, with projected growth of 15–20% by 2026 [10]. By lifting the vanity off the floor, this design creates the illusion of more space – perfect for compact bathrooms or powder rooms. Plus, the open floor area underneath makes cleaning a breeze since there’s no base to trap dust.
"Floating vanities… are particularly favored for small bathrooms where exposing floor space creates an illusion of more room."
– NextDAY Cabinets
The tradeoff? Storage. Floating vanities often lack base cabinets, so you’ll need to get creative with your organization. However, you gain the ability to customize the mounting height, which can be adjusted for comfort or accessibility. Just note that these vanities require secure wall blocking and professional installation to support their weight, making them less DIY-friendly.

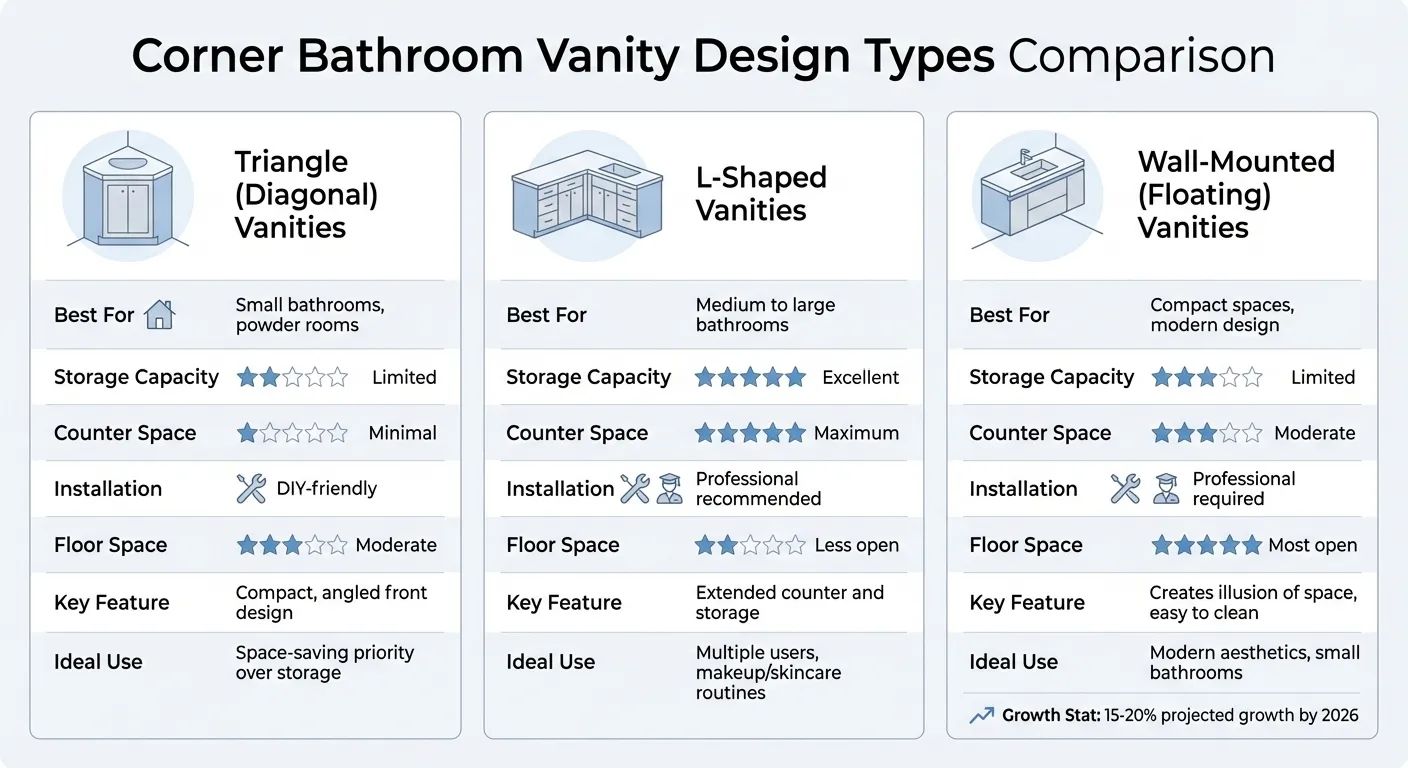

| Feature | Triangle (Diagonal) | L-Shaped | Wall-Mounted |
|---|---|---|---|
| Best For | Small bathrooms, powder rooms | Medium to large bathrooms | Compact spaces, modern design |
| Storage Capacity | Limited | Excellent | Limited |
| Counter Space | Minimal | Maximum | Moderate |
| Installation | DIY-friendly | Professional recommended | Professional required |
| Floor Space | Moderate | Less open | Most open |
After exploring these styles, you’ll be better equipped to choose a vanity that fits your bathroom’s size, layout, and design goals. For more inspiration on transforming your space, check out these bathroom remodeling ideas.
What to Consider Before Buying
Once you’ve settled on a vanity style, it’s time to think about three critical factors: size, storage, and material. These elements can save you from costly mistakes or awkward layouts. Let’s dive into why precise dimensions are so essential for your vanity’s functionality.
Size and Fit
Getting the dimensions right is crucial for a successful corner vanity installation. Most single-sink vanities fall between 24 and 48 inches wide, with a standard depth of 21 inches. However, if space is tight, ultra-narrow options are available, with depths as slim as 16 to 18 inches [1]. But don’t stop at just width and depth – there’s more to consider.
Using the measurements you’ve already taken, make sure the vanity fits seamlessly into your layout. For instance, you’ll need at least 21 inches of clear floor space in front of the vanity and 15 inches between its edge and the toilet’s center [1]. Also, double-check door and drawer swings to ensure they won’t bump into walls or fixtures. Keep in mind that countertops often have a 1-inch overhang, which can influence your final measurements [1].
"The size of your vanity can make a huge difference in the overall layout and create extra storage." – Samantha Hawrylack, Contributing Writer [1]
Before making a purchase, confirm that your corner walls are perfectly square and your floors are level. Take note of electrical outlet placements to avoid accidentally covering them with the vanity [1]. Once you’ve nailed the dimensions, you can turn your attention to making the most of your storage space.
Storage and Organization
Corner vanities naturally have less storage, but smart organization can help you maximize every inch. Stackable shelves with adjustable dividers are a great way to work around plumbing while utilizing the full depth of the cabinet. Pull-out organizers can also make it easier to access items stored in the back [14].
Your choice of sink plays a big role in storage capacity. Above-counter vessel sinks, for example, take up less cabinet space compared to drop-in or undermount sinks [1]. Look for vertical storage solutions like tall, slim cabinets or two-tier countertop organizers to make the most of limited space [14]. Drawer dividers keep smaller items neatly arranged, while mirror-fronted medicine cabinets and adhesive hooks on cabinet doors can add even more functionality [14]. After optimizing your storage, the next step is picking materials that can handle the challenges of a bathroom environment.
Material and Durability
Bathrooms are tough on materials, so durability is key. With humidity, water splashes, and temperature changes, you’ll need materials that can handle it all. In fact, nearly 90% of homeowners say that choosing durable materials is the most important part of a bathroom upgrade [12].
For the cabinet, waterproof plywood is a solid choice because it holds its shape even in damp conditions [11][12]. Solid wood offers a high-end look but needs to be kiln-dried and sealed properly to avoid warping [11][12]. Moisture-resistant MDF is a budget-friendly option, but only if the edges are sealed and protective coatings are applied [11].
When it comes to countertops, quartz stands out for its durability, low maintenance, and heat resistance [12][13]. Granite is another strong option but requires annual sealing, while marble looks elegant but demands more upkeep to prevent stains [12][13]. Metal vanities, made from stainless steel or aluminum, are ideal for humid spaces since they won’t rust, warp, or crack [12]. Don’t forget to choose hinges and handles with high corrosion resistance to withstand the constant exposure to steam [11].
Installation and Plumbing Requirements
Once you’ve got precise measurements, it’s time to tackle the technical side of installation. Installing a corner vanity can be tricky, especially when it comes to aligning the plumbing. Before making a purchase, take note of the exact locations of water lines, outlets, and switches to avoid surprises during installation [7][8].
Plumbing Alignment and Adjustments
Getting the plumbing just right is a must. For L-shaped vanities, misaligned plumbing can lead to leaks or an unstable setup [7]. If the layout doesn’t match, you might need to relocate plumbing, which can be expensive [8]. To ensure proper spacing, leave at least 18 inches between the cabinet edge and the toilet center, and make sure doors can open fully. Use filler strips to seal gaps and keep everything watertight [8].
Once the plumbing is sorted, decide whether you’re ready to take on the installation yourself or if it’s better to call in a professional.
Upgrade your space with a custom bathroom remodel designed for comfort and style.
DIY vs. Professional Installation
If you’re working with pre-drilled, pre-assembled vanities, a DIY approach could be manageable [8]. However, for more complex setups – like L-shaped, topless, or wall-mounted vanities that require plumbing adjustments – it’s best to hire a professional. They’ll ensure the vanity is securely anchored and the plumbing is properly aligned [7][8][10]. Wall-mounted vanities, in particular, need adequate wall blocking to support their weight [10].
Installation Costs
The cost of installation depends on the complexity of the project. Here’s a general breakdown:
- Budget-friendly options: $150–$500
- Mid-range installations: $500–$1,500
- High-end setups: $1,500–$4,000+
Keep in mind that additional expenses may arise for plumbing relocations or custom features like USB-C ports or LED lighting [8][10]. Investing in proper installation not only ensures your vanity functions well but also boosts your bathroom’s overall efficiency.
Design Tips for Corner Vanities
Building on the earlier discussion about space measurements and material choices, these tips focus on refining the look and functionality of your corner vanity. By paying attention to mirrors, colors, and lighting, you can turn even the most compact corner into a practical and visually appealing part of your bathroom.
Using Mirrors to Expand Visual Space
When it comes to corner vanities, mirrors are a game-changer. They reflect light and create the illusion of a larger space – perfect for small or oddly shaped bathrooms. To keep your design cohesive, consider purchasing a coordinating collection that includes a matching mirror. This ensures a unified look that ties the space together seamlessly [8].
If storage is an issue, think beyond a standard flat mirror. A medicine cabinet with a mirrored front offers the same space-enhancing benefits while providing hidden storage for toiletries and grooming essentials [8]. For especially tight powder rooms, a recessed medicine cabinet can be a lifesaver, keeping your countertop clutter-free [8].
Once you’ve nailed the mirror placement, it’s time to think about colors to enhance the spacious feel.
Selecting Light Colors and Finishes
Dark cabinetry can make a corner vanity feel bulky and overpowering. As Samantha Hawrylack points out, "A large vanity with cabinetry can provide more space for toothpaste, washcloths, and cleaning supplies, but they can look clunky" [1]. To avoid this, opt for light finishes like white, gray, or light oak, which help maintain an open, airy vibe. If you’re looking to add some personality, trending colors like navy or shades of green strike a balance between style and lightness [8].
Wall-mounted or floating vanities are also a popular choice. By exposing more floor space, they make the bathroom feel less crowded [8][9]. Just be sure to choose a vanity that matches the scale of your mirrors and cabinets to maintain a balanced look [1].
To complete the design, thoughtful lighting placement is key.
Lighting Placement and Selection
Good lighting is essential for both practicality and ambiance. Before installing fixtures, check your measurements to ensure electrical outlets won’t be blocked by the vanity’s backsplash or cabinetry [1]. You’ll want easy access to outlets for items like hair dryers, shavers, and electric toothbrushes.
Vanity height also plays a role in lighting placement. Standard vanities range from 30 to 34 inches, while comfort-height models are slightly taller at 35 to 36 inches [1]. This will affect where you position your lights. For even, shadow-free illumination, mount wall sconces at eye level on either side of the mirror. If you’re working with a taller vanity, adjust the height of your lighting to avoid creating shadows or glare.
Conclusion
Corner bathroom vanities are a clever way to make the most of limited space while improving the layout of a compact bathroom. By transforming unused corners into practical storage or sink areas, they free up wall space and create better traffic flow.
That said, their success depends heavily on careful planning. Accurate measurements and proper plumbing alignment are critical; even small errors can lead to installation problems or wasted space. Be sure to double-check wall lengths, corner angles, and clearances to ensure the vanity fits correctly and meets building codes.
"Proper alignment, plumbing, and sealing are essential to prevent long-term issues like leaks or instability" [7]
For high-end vanities or custom installations, especially in older homes with uneven walls or floors, professional installation is often worth considering. Professional help is also a smart choice for vanities without pre-installed tops or when dealing with unusual plumbing setups [7][8].
