Yes – sometimes. I’d only pick an L-shaped bathroom vanity if it turns a dead corner into usable counter or storage space without cutting into clear floor space.
Here’s the short answer:
- I see this layout work best in shared bathrooms, awkward corner layouts, and rooms where plumbing is already near the corner.
- I’d skip it in narrow bathrooms where the extra leg crowds the toilet, shower entry, or door swing.
- The main numbers to check are:
- 30 inches in front of the vanity for comfortable movement
- 21 inches minimum clear floor space in front of fixtures
- 15 inches from the toilet centerline to the nearest obstruction
- 21 to 22 inches standard vanity depth, or 23 to 24 inches with overhang
- Costs can climb fast if plumbing or counters need custom work. Replumbing often adds $300 to $600, and a custom corner countertop can add another $300 to $600.
If I had to sum it up in one line: an L-shaped vanity uses space well only when it improves storage, counter room, and daily movement at the same time.

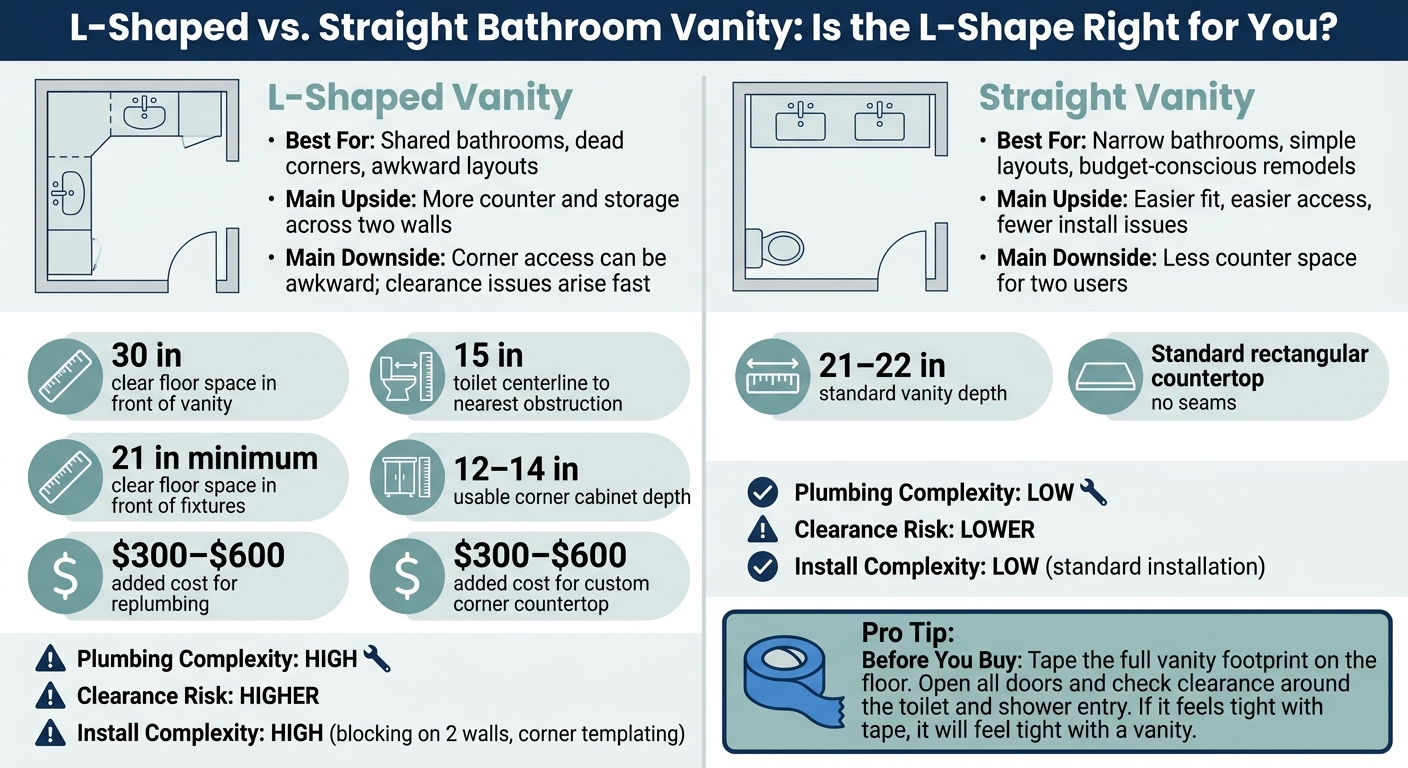

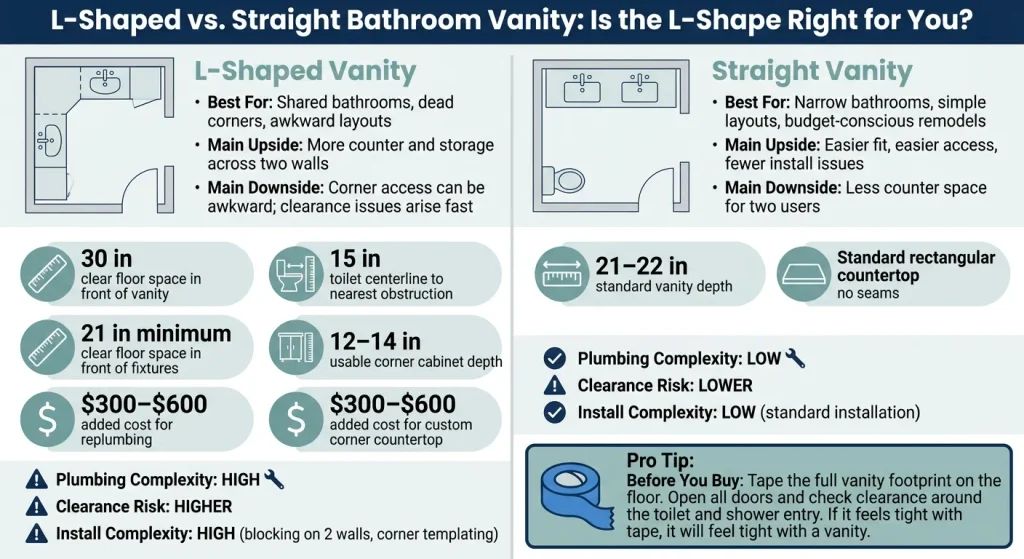

L-Shaped vs. Straight Bathroom Vanity: Key Differences at a Glance
12 Bathrooms Design Inspirations with L-Shaped Vanities – DecoNatic
Quick Comparison
| Layout | Best for | Main upside | Main downside |
|---|---|---|---|
| L-shaped vanity | Shared baths, dead corners, odd layouts | More counter and storage on two walls | Corner access can be awkward, and clearance issues show up fast |
| Straight vanity | Narrow baths, simple layouts, bathroom remodeling costs | Easier fit, easier access, fewer install issues | Less counter split for two users |
Before buying, I’d do one simple test: mark the full vanity footprint with painter’s tape on the floor, then open the door, check the toilet area, and walk the room. If it already feels tight, the layout is probably the wrong fit.
That’s the whole decision: more cabinet space on paper does not always mean more usable space in daily life.
Layout Problems an L Shaped Vanity Can Fix
An L-shaped vanity isn’t a general upgrade. It’s a fix for layout problems that a straight vanity doesn’t handle as well.
Turning an Unused Corner Into Storage or Counter Space
The first thing to check is simple: can the corner become usable space, not just occupied space?
Most bathrooms have a dead corner. A straight vanity runs along one wall, then stops, leaving that 90-degree angle empty. An L-shaped vanity uses both adjacent walls, so that corner turns into counter space you can actually use.
That works only if both walls are long enough to support cabinetry that makes sense. When they are, you can add more counter space without pushing the vanity farther into the middle of the room. And storage only matters if you can reach it without a hassle. If the corner just fills a gap and doesn’t help with daily use, it doesn’t do much.
In older homes, hot and cold supply lines often come up near a corner because of stacked plumbing. If that’s the case, an L-shaped vanity may line up with the existing rough-in and help you avoid moving plumbing, which can get expensive fast.
Creating Separate Zones in Shared Bathrooms
When two people share one bathroom, the problem is often the same: too little counter space and no clear split between tasks. A straight vanity gives both people one long strip of surface, which tends to lead to crowding and clutter.
An L-shaped layout can help by dividing the vanity into two work areas. One leg handles the sink. The other can serve as a grooming spot with its own counter space and storage.
That setup helps only if the split makes everyday use easier. If the second leg creates a cramped corner or awkward reach, the layout loses the point.
When This Layout Improves Flow Instead of Crowding the Room
A bigger vanity helps only when it stays tucked into the corner and keeps the middle of the room open. That’s most useful when a straight vanity would tighten the main walking path.
The L-shape uses the perimeter while leaving the center clear, as long as it doesn’t interfere with:
- the toilet
- the shower entry
- the door swing
Once the vanity starts taking away needed clearance, the layout stops helping.
When an L Shaped Vanity Wastes Space Instead of Saving It
An L-shaped vanity can add square footage on paper. But that doesn’t always mean the space is easier to use. The corner only earns its keep when you can reach it without a struggle and when the vanity doesn’t squeeze the rest of the room.
Corner Cabinets, Drawer Conflicts, and Dead Space
The corner is usually the trouble spot. Usable depth drops to about 12 to 14 inches at the diagonal front edge, compared with 18 to 22 inches along the walls [2]. In plain English: the part that looks roomy from above often turns into a spot where items get shoved back and forgotten. Without pull-outs or rotating inserts, that area becomes dead space fast [2].
Drawer conflicts are another headache. If drawers on one side of the L sit too close to the next cabinet or a nearby fixture, they may not open all the way. And plumbing can make things worse. P-trap placement can block drawers or doors, especially in cabinets under 18 inches deep [2].
Clearance Problems That Show Up After Installation
This is where many people get tripped up. The IRC requires at least 21 inches of clear floor space in front of a vanity, and 30 inches is a better target for day-to-day comfort [2][5]. If an L-shaped vanity sticks too far into the room, that open space can disappear in a hurry.
The toilet often becomes the next problem area. Code calls for at least 15 inches from the toilet centerline to the nearest obstruction [5]. So when one leg of the vanity stretches toward the toilet, the room can feel tight even if the plan looked fine at first glance.
A smart test before buying is simple: use painter’s tape to mark the vanity’s full footprint on the floor, then open the bathroom door and any nearby shower or closet doors to see where things collide [4][5]. If the taped outline already makes the room feel cramped, it’s time to measure the space before you buy.
Added Cost vs. Daily Value
Cost matters here because an L-shaped vanity often asks for more than the cabinet itself. Moving supply and drain lines often adds $300 to $600, and a custom corner countertop can add another $300 to $600 since the 90-degree turn needs a fabricated seam [2]. That seam can also become a long-term weak point for water intrusion.
| Feature | L-Shaped Vanity | Straight Vanity |
|---|---|---|
| Storage | More capacity, but corner access is weaker [2] | Moderate, but typically easier to access [5] |
| Shared use | Better separation for two users | Can feel crowded for two people |
| Plumbing complexity | High; often requires moving lines [2] | Low; usually aligns with standard wall stacks [2] |
| Clearance risk | Higher; protrudes into the center of the room | Lower; hugs one wall |
| Added cost | Higher due to custom fabrication and possible plumbing moves [2] | Lower; standard sizes are widely available [2] |
If you’re paying more but not getting easier movement or better storage, the layout isn’t doing its job. Before choosing this style, measure wall lengths, walking clearance, and the spacing around nearby fixtures.
How to Check If an L Shaped Vanity Fits Your Bathroom
Before you commit to this layout, do a few simple checks. They can save you from an expensive mistake. The goal is straightforward: make sure the vanity fits without eating into usable floor space.
After the cost review, the next step is seeing whether the room can physically handle this shape.
Measure Wall Lengths, Depth, and Walking Clearance
Start by measuring both walls. Each side of the L needs enough length for cabinets that are actually useful, not just a strip of filler.
Standard vanity depth is usually 21 to 22 inches. With countertop overhang, that grows to 23 to 24 inches [5][2]. In a small bathroom, that extra inch or two can make a big difference.
Also check the space in front of the vanity, the gap near the toilet, and the swing area for doors and drawers. A good trick is to use painter’s tape to mark the full footprint on the floor and walls, plus the path of any doors and drawers. That gives you a clear picture before anything gets installed.
Building codes also call for at least 15 inches from the sink center to any side wall [5].
Check Plumbing, Lighting, Mirrors, and Daily Use
Sink placement is easy to gloss over, but it matters a lot in this layout. The drain usually sits 8 to 12 inches from the inside corner along the front edge [2]. That spot affects more than plumbing. It changes how much standing room you get and how easy the sink is to use day to day.
If your current supply and drain lines already come out near the corner, you could save $300 to $600 in replumbing costs [2]. If not, costs can stack up fast.
For mirrors and lighting, the most practical setups are usually:
- One wide mirror
- Two smaller mirrors that cover both walls [2]
Lighting on two walls can also help cut down on shadows [2]. While you’re at it, make sure outlet placement still works with the mirror and lighting plan.
Once the rough-in and fixture layout make sense, weigh the added labor against the day-to-day payoff.
Compare Installation Complexity Before You Decide
An L-shaped vanity often gets more involved once plumbing, countertop work, and wall support enter the picture. The countertop usually needs corner templating, and it may require custom fabrication or leave visible seams at the 90-degree turn [2].
If you want a wall-mounted vanity, both walls need blocking between the studs to carry the load. That can add 2 to 3 hours of labor [2].
| Feature | Straight Vanity Layout | L-Shaped Vanity Layout |
|---|---|---|
| Plumbing Changes | Usually fits existing rough-ins [5] | Often requires drain relocation parts or moving lines to the corner [2] |
| Countertop Complexity | Standard rectangular slab; few seams [1] | Requires corner templating; visible seams or custom fabrication [2] |
| Wall Support | Standard installation [5] | Blocking between studs required on both walls [2] |
These checks help narrow things down to the bathrooms where this shape makes sense. If the measurements, plumbing, and wall support all line up, the next step is figuring out whether the layout suits the bathroom’s size and traffic flow.
Best Fits, Poor Fits, and How to Make the Final Call
After checking fit, plumbing, and install details, the last step is simple: decide whether the layout makes the bathroom easier to use every day.
Bathrooms Where an L Shaped Vanity Works Well
An L-shaped vanity makes the most sense when the corner can do real work instead of sitting wasted. That usually means extra counter space, more storage, or a better flow for daily routines.
It tends to work well in Jack-and-Jill bathrooms, where a second sink zone can help split use between two people [2]. It can also be a smart pick in bathrooms with awkward or uneven layouts, since the L shape can turn odd corners into usable storage or counter space [2][3]. And if the plumbing is already set up near a corner, the layout may be easier to justify.
Bathrooms Where a Straight Vanity Is Usually the Better Choice
If the vanity eats up clearance instead of making the room work better, go with the simpler option.
In narrow bathrooms, where every inch of floor space counts, a straight vanity is often the better fit. An L-shaped corner can get in the way of the main path to the toilet or shower, while a straight vanity keeps more of the floor open and gives you a simpler counter setup [5].
A straight vanity is also usually the better money move when the plumbing is centered on one wall and shifting it would add a lot of labor cost [2]. The same applies when the room has windows, door casings, or walls that aren’t a perfect 90 degrees. Those details can make an L-shaped install harder – or not workable at all. If the L shape crowds the main walkway, skip it.
Final Takeaway: Choose the Layout That Works Better Every Day
Use those tradeoffs to make the call. The right vanity is the one that makes everyday use easier. Choose an L-shaped vanity only if it gives you better access, more storage, and smoother movement on a daily basis.
