A walk-in shower remodel is usually easiest when you keep the shower near the old tub plumbing, pick the drain before tile, and plan for water control from day one. In many homes, staying in the same footprint helps avoid $400–$1,500 in drain-move costs, while poor waterproofing can lead to trouble in 3 to 7 years. Most pro installs land around $6,000–$12,000, but custom builds often run $9,000–$25,000.
If I wanted the short version, I’d focus on these points first:
- Keep plumbing where it is when possible
- Replace the shower valve while walls are open
- Pick the drain first, then choose tile
- Give doorless showers enough depth to limit splash
- Add a bench only if the shower is deep enough
- Put wall blocking in now for grab bars later
- Choose low-upkeep wall materials if I want less cleaning
- Check slip resistance, entry space, and ventilation before I finish the design
A few numbers matter more than style at the start:
| Item | What to know |
|---|---|
| Typical cost | $6,000–$12,000 for many pro installs |
| Basic to custom range | About $9,000–$25,000 |
| Drain move cost | $400–$1,500 |
| Waterproofing cost | $800–$1,500 |
| Water damage found after demo | About 24% of homeowners |
| Mold found after demo | About 19% of homeowners |
| Doorless shower depth | Usually 42–48 inches minimum |
| Bench-friendly depth | Usually 48 inches or more |
| Slip rating for wet tile | DCOF 0.42+ |
The main idea is simple: I’d make layout, drainage, and waterproofing decisions first, because those choices shape cost, labor, cleaning, and day-to-day use far more than the finish materials do.

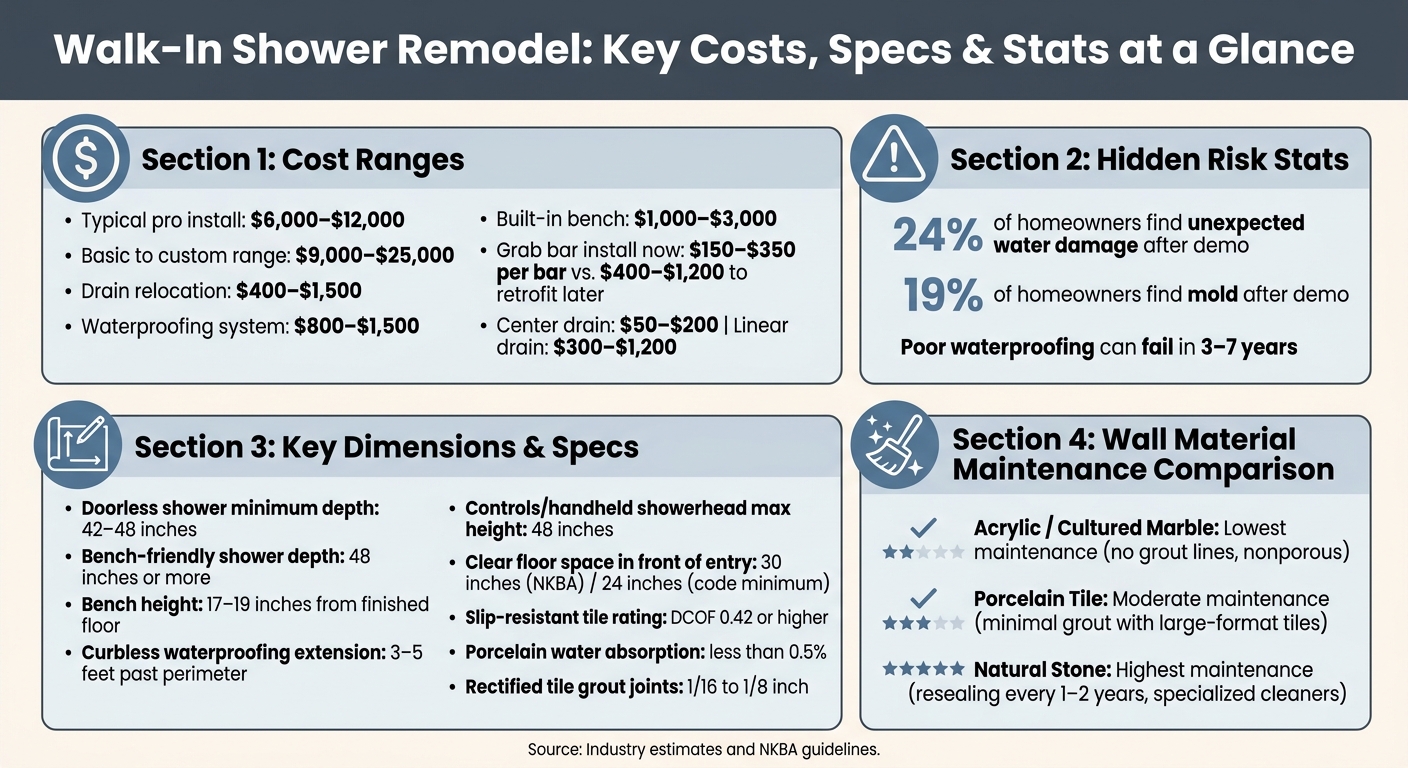

Walk-In Shower Remodel: Key Costs, Specs & Stats at a Glance

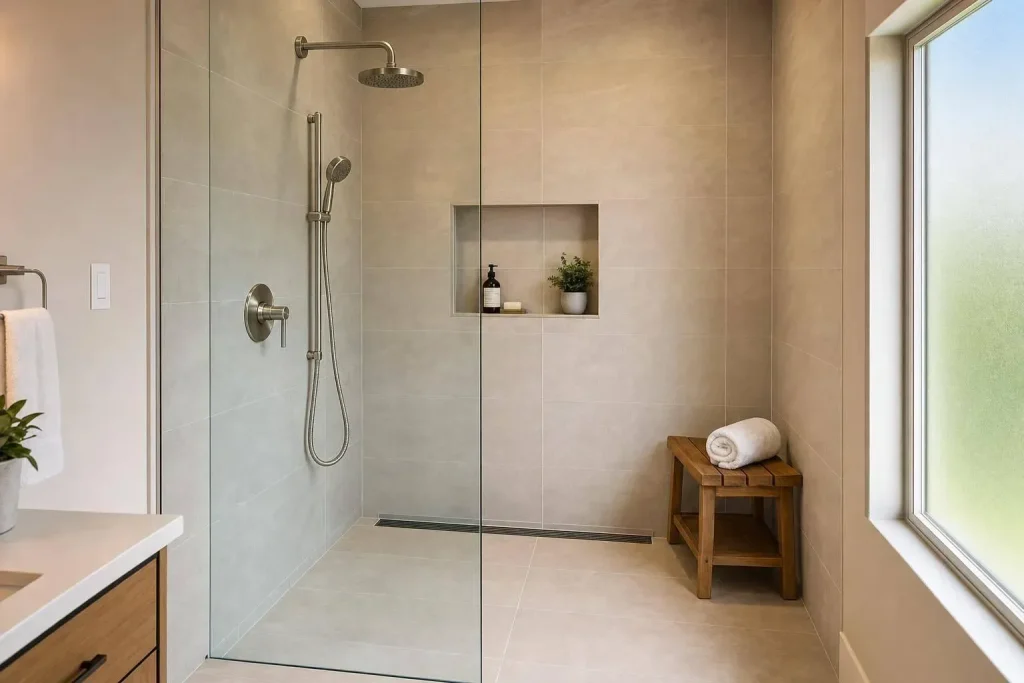

Tub to Walk-in Shower Ideas
Why the Right Walk-In Shower Plan Makes a Remodel Easier
Walk-in shower photos usually leave out the part that makes a remodel hard: what’s hiding behind the walls and under the floor. That’s why the first planning question isn’t about style. It’s about whether the new shower can work with the plumbing and structure you already have.
A shower is a system of plumbing, framing, slope, and waterproofing – not just a surface finish.
Once walls are opened, surprises can show up fast. Water damage or mold can stall the job before the new shower even goes in. Roughly 24% of homeowners run into unexpected water damage after walls are opened, and about 19% find mold that needs remediation [7]. In most cases, those problems don’t show up until demolition starts.
That’s also why details like drain location, subfloor condition, wall framing, ventilation, and waterproofing matter so much. They shape how simple – or messy – the remodel becomes. Moving a drain can add $400 to $1,500 in plumbing costs [7]. A standard waterproofing system usually costs $800 to $1,500 in materials and labor [1]. And if waterproofing is done poorly, signs of failure can appear within 3 to 7 years [1].
Every idea in this section is meant to make the shower better without pushing you into big structural changes.
The next ideas focus on choices that cut disruption and improve day-to-day use. First, check whether the shower can stay near existing plumbing.
1. Plumbing Efficiency
1. Keep the shower in the existing tub footprint when you can
If you can, keep the new shower inside the old tub footprint. In many bathrooms, a standard 60-inch tub alcove can take a 30 x 60, 32 x 60, or 36 x 60 shower base without moving walls or shifting plumbing. That keeps the remodel simpler before the layout starts to drift.
There’s also a plain cost reason to do this: leaving the drain where it is helps you avoid subfloor work and pipe rerouting. In wood-framed floors, joist direction and local notching rules can limit where the drain can go [5][7].

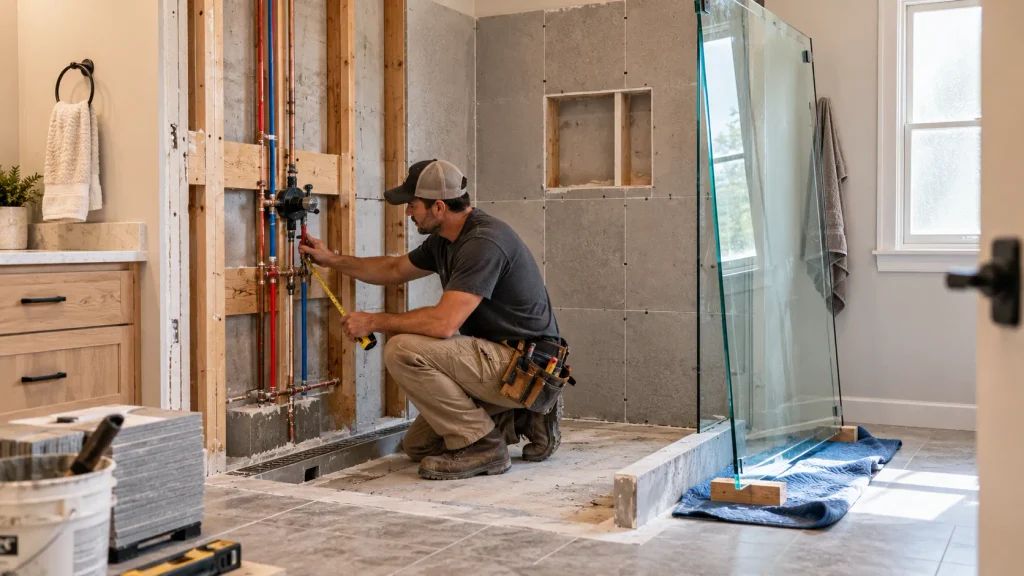

2. Replace the shower valve while the walls are open
If the walls are already open, swap out the shower valve then. It’s one of those jobs that’s much easier now than later. If you wait until after the tile goes in, you may end up tearing into finished work, which adds labor and cost [5][10].
Before you add a rain showerhead or body sprays, check pipe size and water pressure [5][4].
Once the plumbing is set, the next step is figuring out how the shower will handle splash and runoff.
2. Layout & Water Control
Once the plumbing is locked in, the next step is managing slope, splash, and how deep the shower needs to be.
- Choose your drain type before you pick your tile
Your drain location affects the whole shower layout. A center drain calls for a four-way slope, which usually means smaller mosaic tile works best. A linear drain lets the floor slope in one direction, so it pairs better with 12 x 24-inch tile or larger [1][2].
The price gap matters too. Center drains usually cost about $50–$200, while linear drains often fall between $300 and $1,200, depending on length and material [9]. Pick the drain first so you don’t run into problems with tile layout or floor slope later.
Once the drain is set, the shower opening starts to matter just as much. That’s what decides how well the space keeps water where it belongs.
- Match the shower depth to your entry style
If you’re going with a doorless, open-entry shower, depth does a lot of the heavy lifting. In most cases, you need at least 42 to 48 inches of depth, and a 42 x 60-inch footprint does a better job of keeping spray inside the shower [2][7]. If the shower is smaller than that, a fixed glass panel or splash guard can help keep water off the bathroom floor.
Showerhead placement matters just as much as the footprint. Put the showerhead on the wall farthest from the entry, and point it toward the back corner.
For curbless showers, waterproofing needs to extend 3 to 5 feet past the shower perimeter [9]. Skip that step, and water can work its way under the tile and cause subfloor rot over time.

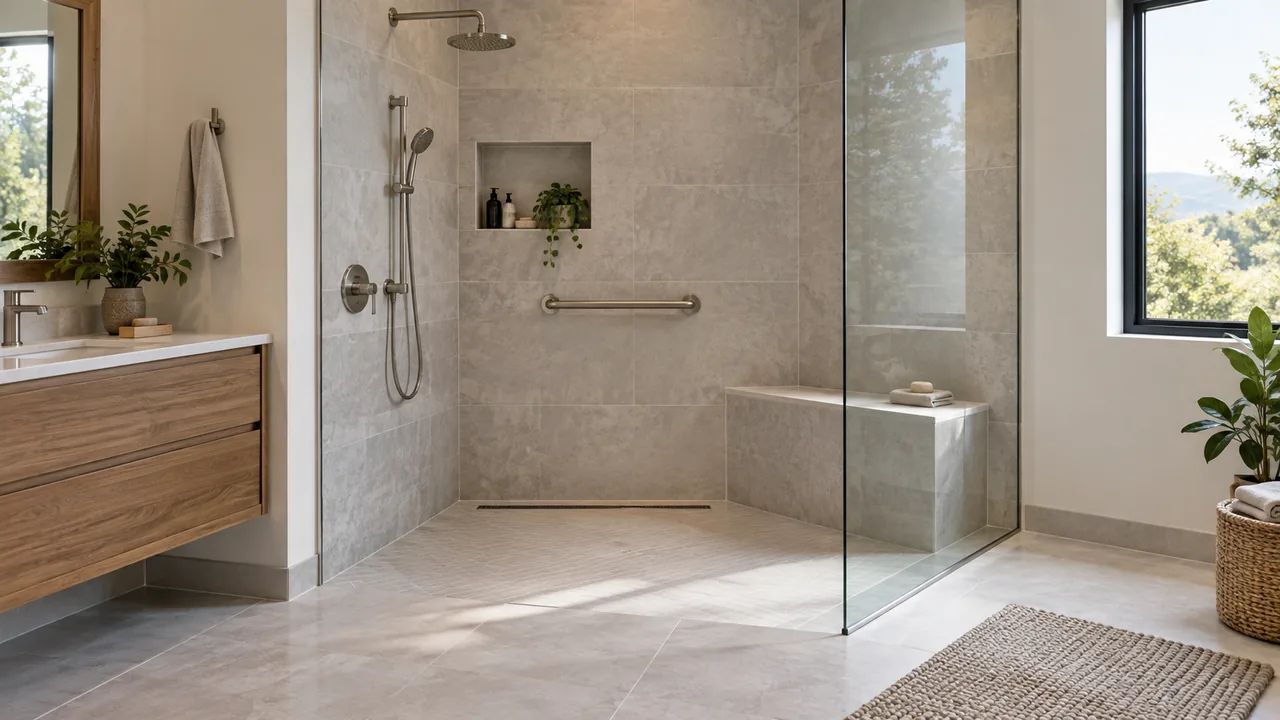

3. Comfort & Accessibility
After layout and water control, turn to comfort, reach, and aging-in-place details. This is the stage where a little planning pays off, especially while the walls are still open.
5. Add a bench only if the shower is deep enough
A built-in bench can make a shower much more comfortable. It gives you a place to sit, helps with tasks like shaving, and can make the space easier to use over time. But there’s a catch: the shower needs enough depth so the bench doesn’t make the space feel cramped. In most cases, that means at least 48 inches of shower depth [2][3].
Set the bench height between 17 and 19 inches from the finished floor. The bench top should also slope a bit toward the drain so water doesn’t sit on the seat [1][3]. Cost-wise, a built-in bench can add $1,000 to $3,000 [6].
If the shower is on the smaller side, a built-in bench may not make sense. In that case, a teak stool is a smart, water-resistant option [2].
6. Install grab-bar blocking now, even if you skip the bars for now
This is one of those small decisions that can save a lot of hassle later. Adding grab bars during a remodel usually costs about $150 to $350 per bar. Retrofitting them later can run $400 to $1,200 and may mean opening up finished tile [3][6].
A better move is to install 2×10 or doubled 2×6 wood blocking behind the walls during framing. That way, the support is already there if grab bars are needed later [1][3].
It also helps to keep handheld showerheads and controls no higher than 48 inches so they’re within reach from a seated position [2]. Choices like these don’t just help with aging in place. They also make the shower easier to use day to day and simpler to deal with later on.
4. Maintenance & Daily Use

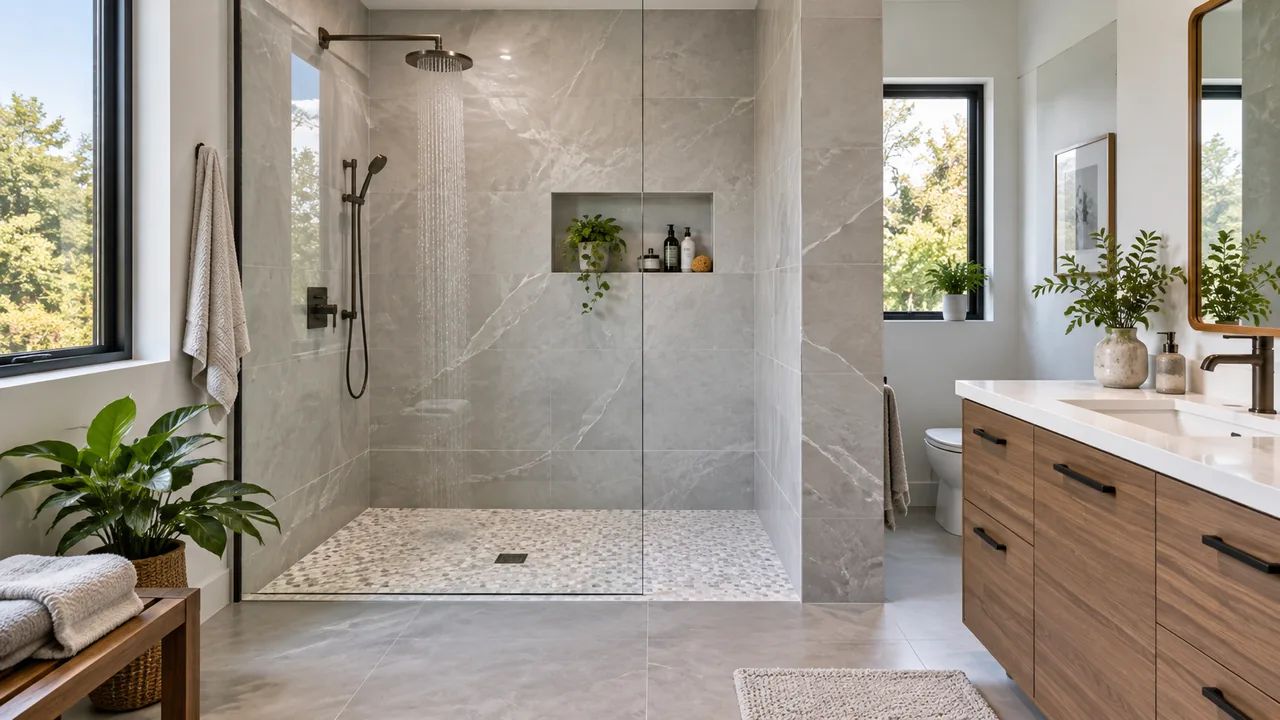

7. Choose wall materials that match how much cleaning you’re willing to do
Once you’ve figured out layout, accessibility, and seating, wall materials become the next big daily-use decision.
They have a direct effect on how much cleaning you’ll be doing for years. Solid surface panels like acrylic or cultured marble are the easiest to live with because they’re nonporous and don’t have grout lines.
Tile is still a popular pick, but grout means more upkeep. If you want the look of tile without as much scrubbing, go with large-format porcelain that measures 12 x 24 inches or larger. That cuts down on grout joints and makes cleaning less of a chore. Porcelain also absorbs less than 0.5% of water, which makes it a strong shower surface [2]. You can also ask your installer about rectified tiles, which allow for grout joints as narrow as 1/16 to 1/8 of an inch [2].
That tradeoff matters. A finish that looks easy at first glance isn’t always the one that’s easiest to keep clean.
Natural stone asks for more attention. It needs specialized cleaners and resealing every one to two years [2].
Here’s the simple version:
- Acrylic and cultured marble: lowest maintenance
- Porcelain: moderate maintenance
- Natural stone: highest maintenance
Daily habits matter too, especially if your shower has glass and tile. Squeegee the glass and tile after each shower to cut down on spots and buildup [8].
Cost, Accessibility, and Resale Considerations
Once the layout is locked in, the last calls usually come down to budget, safety, and resale.
The biggest thing that affects price is simple: does the plumbing stay where it is? If it does, the job is usually shorter, smoother, and easier to plan for. Costs climb fast when plumbing lines move, curbless details are added, or the shower includes custom glass and built-in seating. A basic walk-in shower starts at about $9,000–$15,000, while a mid-range custom tile build usually lands around $15,000–$25,000 [5].
Once you know what’s pushing the budget, it makes sense to think ahead about safety. One smart move is to install blocking in the walls now, even if you don’t want grab bars yet. That way, they can be added later without tearing into finished tile or drywall.
For flooring, choose tile rated at a Dynamic Coefficient of Friction (DCOF) of 0.42 or higher for wet areas [2][6]. It’s one of those small specs that can make a big difference underfoot. The NKBA also recommends 30 inches of clear floor space in front of the shower entry, while the building code minimum is 24 inches [2][6]. Add in a low threshold and grab bars, and the shower becomes easier to use and safer day to day.
Resale matters too. In a primary bathroom, a walk-in shower is generally seen as a good upgrade [2]. But if this is the only bathroom in the home with a tub, it’s smart to keep at least one tub somewhere else in the house. Buyers tend to respond better to designs that feel simple, practical, and easy to live with than ones that feel overly personal. Those choices also help the remodel keep its value without adding extra moving parts to the project [2][7].
Final Thoughts
After plumbing, drainage, accessibility, and maintenance, the last test is pretty simple: does the shower fit the bathroom without forcing big changes?
The best walk-in shower ideas work with the bathroom you already have. A remodel tends to go better when the shower lines up with the existing plumbing, layout, and structure.
In most cases, a simpler layout leads to an easier remodel. If the shower fits the current footprint, waterproofing is simpler, tile decisions are less of a headache, and the finished shower is easier to use day to day. Every extra change adds cost, time, and more moving parts. The smoothest remodel usually improves the shower without creating extra work behind the walls.
Before you move forward, check the basics: water control, safe entry, built-in storage, and ventilation. Once those pieces are in place, the design side gets a lot easier.
