Water leaks can cause serious damage to your home, from rotting wood to mold growth and higher energy bills. Corrugated roof flashing is key to stopping leaks by sealing gaps in vulnerable areas like seams, intersections, and roof openings. This thin metal layer fits snugly with the wave-like shape of corrugated roofing panels, creating a strong barrier against water intrusion.
Key Takeaways:
- Purpose: Corrugated roof flashing keeps water out of joints, edges, and roof openings.
- Materials: Common options include galvanized steel (durable), aluminum (lightweight but corrosion-prone), and copper (long-lasting with aesthetic appeal).
- Installation Tips:
- Ensure proper overlap based on roof pitch.
- Shape flashing precisely to match roof contours.
- Use mechanical fasteners instead of relying solely on sealants.
- Maintenance: Regular inspections can catch rust, loose sections, or gaps early. Look for signs like water stains, damp insulation, or peeling paint.
Proper flashing installation and maintenance can prevent costly repairs and extend the life of your roof.
How To Install Sidewall Flashing For Metal Roof. Sidewall Trim Installation Corrugated Metal Roofing
What Is Corrugated Roof Flashing?

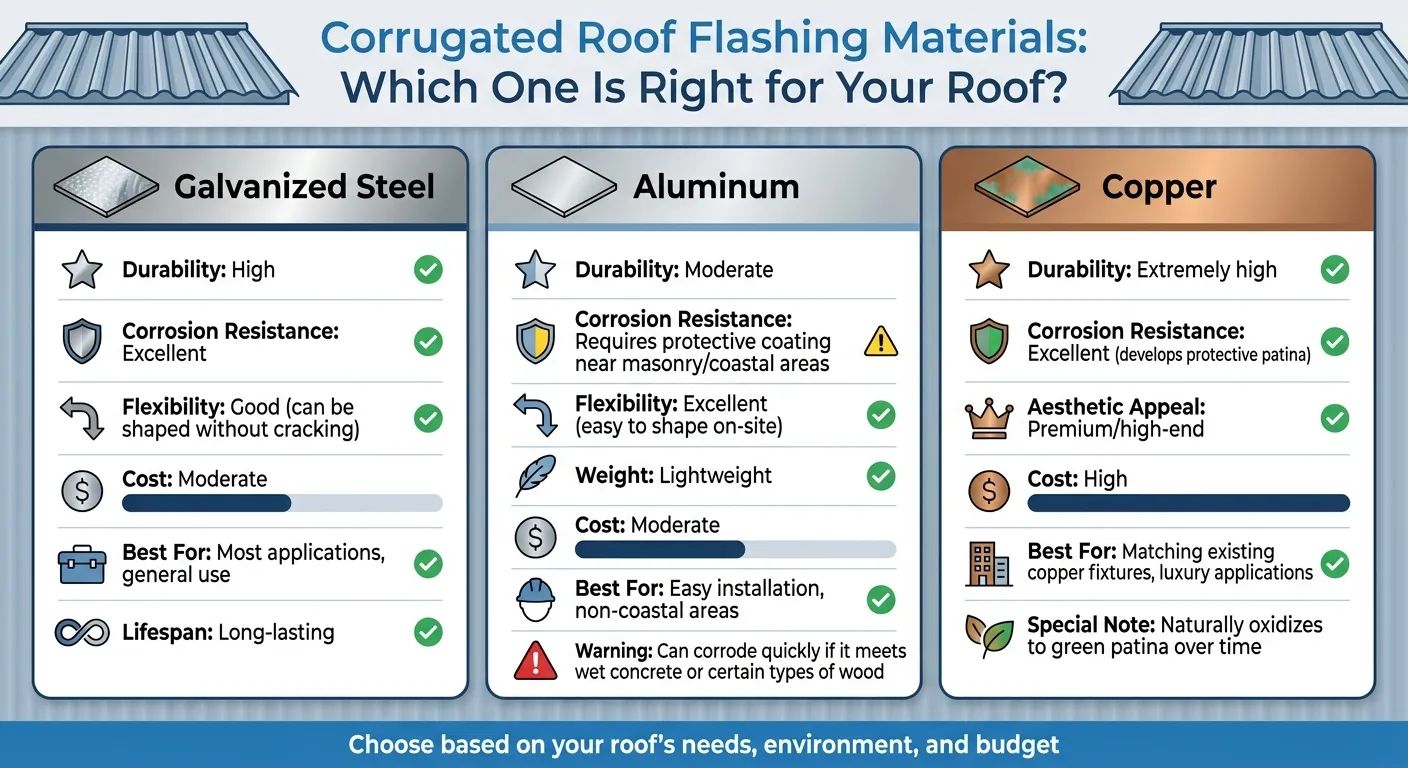

Corrugated Roof Flashing Materials Comparison: Galvanized Steel vs Aluminum vs Copper
Corrugated roof flashing is a thin metal layer designed to fit the wave-like shape of corrugated roofing panels. Its main job? To steer water away from vulnerable areas where the roof meets vertical surfaces like walls or dormers, guiding it safely toward the gutters [4]. This prevents water from seeping into these intersections and causing damage.
What makes corrugated roof flashing stand out is its tailored design. Unlike standard flashing, it’s shaped specifically to align with the ridges and valleys of corrugated panels. This snug fit ensures water stays out, protecting the roofing system underneath. Let’s take a closer look at how this custom design works with corrugated panels.
How It Fits Corrugated Roofing Panels
The success of corrugated flashing lies in its ability to match the unique profile of the roofing panels. Corrugated panels have alternating peaks and troughs that naturally direct water flow, but these contours also create gaps that need sealing. Flashing is carefully bent and shaped to follow these contours, leaving no room for leaks. This precise fit is critical for maintaining a strong water barrier.
In metal roofing systems, flashing is usually placed at the top of the panels to protect key seams and joints. Its size and shape are adjusted based on the roof deck’s specific features and the roofing materials used [4]. Without this exact fit, even the best flashing can fail to keep water out. That’s why this custom fitting process is so important.
Common Materials Used
Several materials are commonly used for corrugated roof flashing, each with its own strengths:
- Galvanized steel: Known for its durability and resistance to corrosion, this is the go-to material for most applications. It’s also flexible enough to be shaped to fit the roof’s profile without cracking.
- Aluminum: A lighter and more flexible option, aluminum is easier to shape on-site. However, it needs a protective coating when used near masonry or in coastal areas with salty air. As Fraser Roofing points out:
"Aluminum flashing can corrode quickly if it meets wet concrete or certain types of wood." [3]
- Copper: A high-end choice prized for its visual appeal and ability to match existing copper fixtures. Copper is extremely durable but will naturally oxidize over time, developing a green patina [4].
Each material offers distinct advantages, allowing homeowners and contractors to choose what best suits the roof’s needs and environment.
How Corrugated Roof Flashing Prevents Leaks

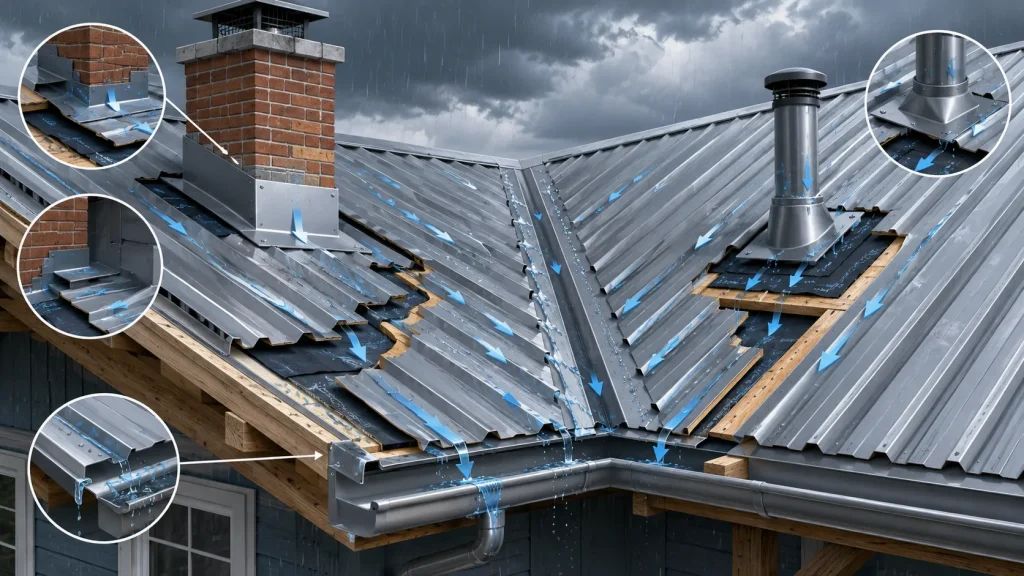

Corrugated roof flashing plays a crucial role in sealing gaps around chimneys, vents, and valleys. By directing water off the roof, it helps prevent structural damage caused by leaks. Its overlapping design ensures water flows along a continuous path, minimizing the chance of seepage.
Creating a Water Barrier
Properly installed flashing acts as a shield, stopping water from sneaking through even the tiniest gaps. Dominick Fraser, Owner of Fraser Roofing, LLC, puts it simply:
"Think of flashing as being like the rubber seal around your car door. If it starts peeling away, rainwater will drip inside every time there’s a storm."
To maximize protection, metal flashing is layered over peel-and-stick membranes at critical roof intersections, like where walls meet the roof or in valleys. Importantly, the flashing is embedded beneath the roofing material rather than fastened on top. This approach not only seals openings but also ensures water is directed away without creating new vulnerabilities.
Improving Water Drainage
Flashing doesn’t just block water – it also directs it. For instance, drip edge flashing channels water away from the roof’s edge and into gutters, keeping moisture from damaging the fascia or decking. The overlapping design supports a steady downward flow, reducing the risk of pooling.
Regular maintenance is essential, as sealants like roofing cement and caulk can dry out and crack over time. In coastal areas, metal flashing is especially prone to rust due to salty air, so periodic inspections are a must to catch any corrosion or holes early.
Protecting Roof Openings and Connections
Roof openings, such as vent stacks and chimneys, are hotspots for water intrusion. In fact, improper flashing accounts for 32% of roof system failures, while gaps and joints are responsible for 30% to 40% of roof-related leaks [5]. Flashing provides a watertight barrier by overlapping materials to guide water away from these vulnerable areas.
For vent stacks and similar penetrations, metal flashing is installed over a peel-and-stick membrane and integrated with the roofing panels. In more complex cases, like "saddle-over-pipe" flashing, water is directed around obstacles to prevent pooling. Flashing at these critical points works as part of the broader roof protection system, ensuring structural integrity. Additionally, EPDM membranes with a minimum thickness of 45 mils add durability and meet building code requirements.
When flashing fails, the consequences can be severe – water can damage insulation, encourage mold growth, and cause structural rot. This is why the International Building Code (IBC) 2021 Section 1503.2 specifies detailed flashing requirements for all roof penetrations, ensuring long-term structural protection.
Installation Best Practices for Leak Prevention
Keep your home secure with reliable roofing services from experienced professionals.
Getting the installation right is key to keeping your roof leak-free. It’s the final step that brings together the right materials and design to create a reliable barrier against water intrusion.

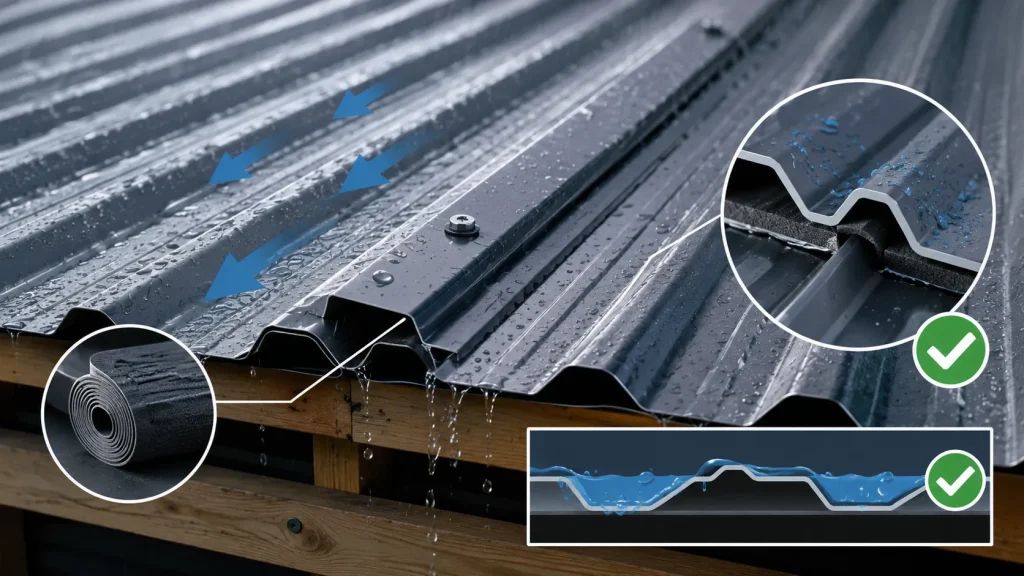

Proper Overlap to Stop Water Seepage
The amount of overlap needed between flashing sections depends on your roof’s slope. For a roof with a 10° pitch, the sections should overlap by at least 6 inches (150 mm). On a shallower 5° pitch, the overlap should increase to at least 12 inches (300 mm) to prevent water from pooling or backing up[6]. For side laps, ensure they overlap by at least one full corrugation to create a tight, weather-resistant seal[6].
| Roof Pitch | Recommended Minimum Overlap | Purpose |
|---|---|---|
| 10° Pitch | 6 inches (150 mm) | Standard weatherproofing for moderate slopes |
| 5° Pitch | 12 inches (300 mm) | Prevents water pooling on shallow slopes |
| Side Laps | One full corrugation | Ensures a snug fit and prevents lateral water ingress |
For an added layer of protection, use mastic lapping tape between overlaps[6]. Also, make sure the corrugations are perfectly aligned. For profiles like tile-form metal, install the panels from right to left so each section overlaps correctly with the previous one[6].
Once the overlaps are secure, the flashing needs to be shaped to fit the roof’s natural contours.
Fitting Flashing to Corrugated Shapes
Corrugated panels have peaks and valleys that flashing must follow precisely. Carefully bend and shape the flashing to match the panel’s profile, ensuring no gaps or air pockets where water could collect. Proper alignment is essential to avoid creating unintended channels that direct water toward the roof deck.
After achieving the right overlap and fit, the next step is securing the flashing against the elements.
Securing Flashing Against Wind and Rain
Sealants alone aren’t enough. Roofing cement and caulk can dry out and crack over time[3]. Instead, flashing should be mechanically fastened and layered, tucking it under other roofing components rather than nailing it on top[3]. This method allows for the natural expansion and contraction of the metal due to temperature changes, which helps prevent fasteners from loosening over time[3].
"If the flashing is loose, rusted, or missing, water will find a way in. It doesn’t take a large space for moisture to start causing damage behind the scenes." – Dominick Fraser, Owner, Fraser Roofing, LLC[3]
Regular inspections are essential to catch loose sections, rust, or gaps before they become a problem[3]. In coastal areas, where salt air accelerates corrosion, these inspections are even more critical[3]. Replace any cracked sealants promptly to stop water from seeping underneath.
Signs Your Roof Flashing Needs Repair
Catching problems with your roof flashing early can save you a lot of money and stress. Often, flashing issues go unnoticed until water damage has already made its way into your home, causing significant problems [3].
Rust or Corrosion on Metal Flashing
Take a close look at the metal flashing around chimneys, vents, skylights, and roof valleys. Discoloration, pitting, or small holes are telltale signs of rust. Aluminum flashing is particularly at risk when exposed to wet concrete, certain treated woods, or salty air near coastal areas, all of which speed up corrosion.
"Rust eats away at the metal, creating holes that let water through." – Dominick Fraser, Owner, Fraser Roofing, LLC [3]
When rust compromises the flashing, water can sneak into your attic. This can soak insulation, promote mold growth, and eventually cause wood rot. After heavy rain, it’s a good idea to check your attic for damp spots, mold, or even small puddles. Also, inspect for any loose or detached flashing sections that could allow water to seep in.
Gaps or Loose Sections
Fluctuating temperatures and strong winds can loosen flashing from the roof or walls. Additionally, worn-out screws or washers may leave small gaps, creating an entry point for moisture [1].
These gaps can quickly lead to water infiltration, so keep an eye out for visible signs of damage or leaks.
Water Stains or Interior Leaks
If you notice water stains on ceilings or walls, or peeling paint and bubbling wallpaper near the roofline, your flashing might be failing. These issues suggest water has bypassed the flashing and is starting to damage your home’s structure. Check your attic for damp insulation or mold as additional signs of trouble. Damaged flashing can even provide an entry point for pests and insects.
"Many flashing issues aren’t obvious until there’s already significant damage inside the house." – Fraser Roofing, LLC [3]
Don’t wait to address these problems. Ignoring them can lead to worsening wood rot, mold, and more expensive repairs down the line. Regularly checking for these signs can help protect your home and extend the life of your roof.
Conclusion: Protecting Your Roof With Proper Flashing
Corrugated roof flashing plays a crucial role in keeping water away from vulnerable areas of your roof [1]. When installed correctly, it channels water away from joints, edges, and penetrations. The line between a durable, leak-free roof and costly water damage often depends on proper flashing and routine maintenance.
Getting the installation right is essential. Even small mistakes during the process can let moisture seep in [2]. Sealants and adhesives, for instance, need dry conditions and temperatures above 40°F to form a proper bond [2]. Skipping these details can lead to moisture problems, eventually causing wood rot, mold, or even structural damage [2].
"Regular inspections and timely repairs can keep small issues from turning into expensive problems." – Dominick Fraser, Owner, Fraser Roofing, LLC [3]
Routine inspections are just as important as proper installation. They help catch potential problems early on, before they escalate [3]. During these check-ups, watch for rust on metal flashing, loose sections near chimneys or vents, and cracked or dried-out sealants. Don’t forget to check your attic for signs like damp insulation or water stains – these could point to a flashing issue. Addressing these early warning signs can save you from expensive repairs down the line [3].
Flashing isn’t just an accessory – it’s a key part of protecting your roof. By using high-quality materials, ensuring precise installation, and committing to regular maintenance, corrugated roof flashing can provide reliable defense against water damage for years to come. Together, proper installation and consistent upkeep safeguard your home effectively.
