A roof valley is where two sloping roof sections meet, creating a channel to direct water to the gutters. Roof valley flashing – typically made of metal like aluminum, steel, or copper – protects your home by preventing leaks and water damage. However, valleys are prone to debris buildup, ice dams, and wear over time, which can lead to costly repairs if ignored.
Key Points:
- Types of Roof Valley Flashing: Open (exposed metal, easy to inspect), Closed-Cut (hidden, sleek look but harder to maintain), and Woven (shingles interlocked, limited to certain materials).
- Signs of Damage: Water stains, rust, cracks, missing shingles, and clogged valleys.
- When to Repair vs. Replace: Repair for minor issues like loose seams; replace for widespread leaks, rotted decking, or incompatible materials.
- Maintenance Tips: Inspect valleys twice a year, clear debris, and fix small issues promptly.
Regular inspections and upkeep help extend the life of your roof and prevent expensive repairs. Keep valleys clear, ensure water flows properly, and address problems early to avoid bigger issues.
The BEST Way to Install a Valley!

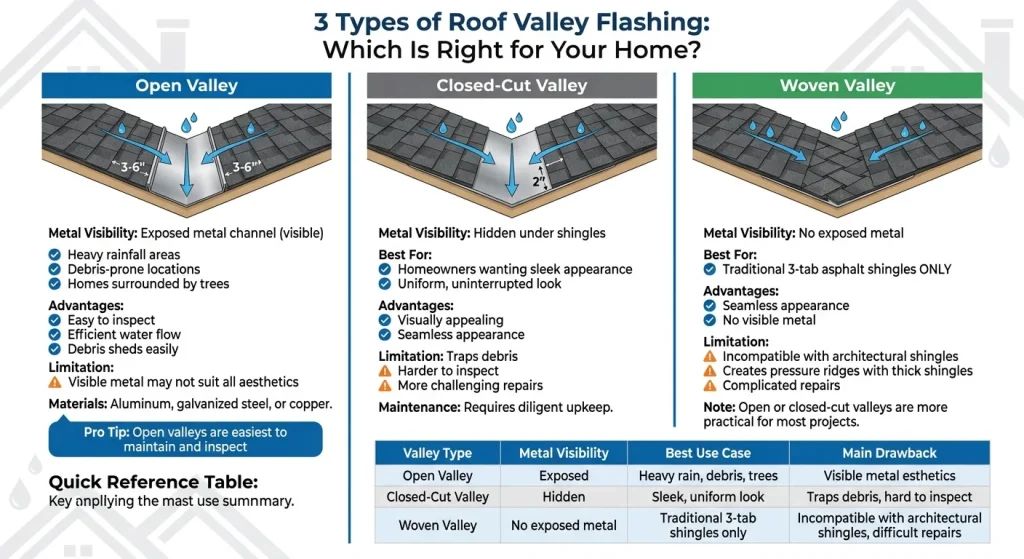

3 Types of Roof Valley Flashing
Keep your home secure with reliable roofing services from experienced professionals.
Roof valley flashing comes in three designs: open, closed-cut, and woven. Each type manages water differently and pairs better with certain roofing materials. Here’s what sets them apart:
Open Valley Flashing
An open valley uses exposed metal running down the center of the valley. Shingles are trimmed back 3 to 6 inches on both sides, leaving a visible channel – often made of aluminum, galvanized steel, or copper – that directs water efficiently downward [1]. Open valleys are great for heavy rainfall and areas prone to debris, such as homes surrounded by trees. The exposed metal also makes it easier to spot and address corrosion during maintenance [2].
"Open valleys are often the most forgiving for debris shedding when designed properly." – Top Tier Metals [2]
Closed Valley Flashing
Closed-cut valleys hide the metal beneath continuous shingles, creating a sleek, uninterrupted look. However, this design can trap debris and make it harder to detect leaks. Shingles from one roof plane are laid across the valley, while shingles from the other side are trimmed back about 2 inches from the centerline [1]. While visually appealing, closed valleys require diligent upkeep to prevent water buildup, which can make repairs more challenging [2].
Woven Valley Flashing
Woven valleys involve interlocking shingles from both roof planes over the valley, leaving no exposed metal. This approach provides a seamless appearance but comes with restrictions. It only works with traditional 3-tab asphalt shingles. Modern architectural shingles are too thick, leading to pressure ridges that compromise the seal [1]. Repairs are also more complicated due to the interwoven design [1]. For most roofing projects, open or closed-cut valleys are more practical options.
| Valley Type | Metal Visibility | Best For | Main Limitation |
|---|---|---|---|
| Open | Exposed metal channel | Heavy rain, debris-prone areas | Visible metal may not suit all aesthetics |
| Closed-Cut | Hidden under shingles | Smooth, uniform look | Traps debris; harder to inspect |
| Woven | No exposed metal | Traditional 3-tab shingles | Incompatible with architectural shingles |
Knowing these designs can help identify potential problem areas, making inspections and maintenance more effective. If you suspect damage, it is wise to ask roofing contractors about their experience with your specific valley type.
How to Spot Roof Valley Flashing Damage
Roof valleys carry more water per square foot than any other part of your roof, making early detection of damage critical [1]. Here’s what to keep an eye on during inspections.
Water Leaks and Stains

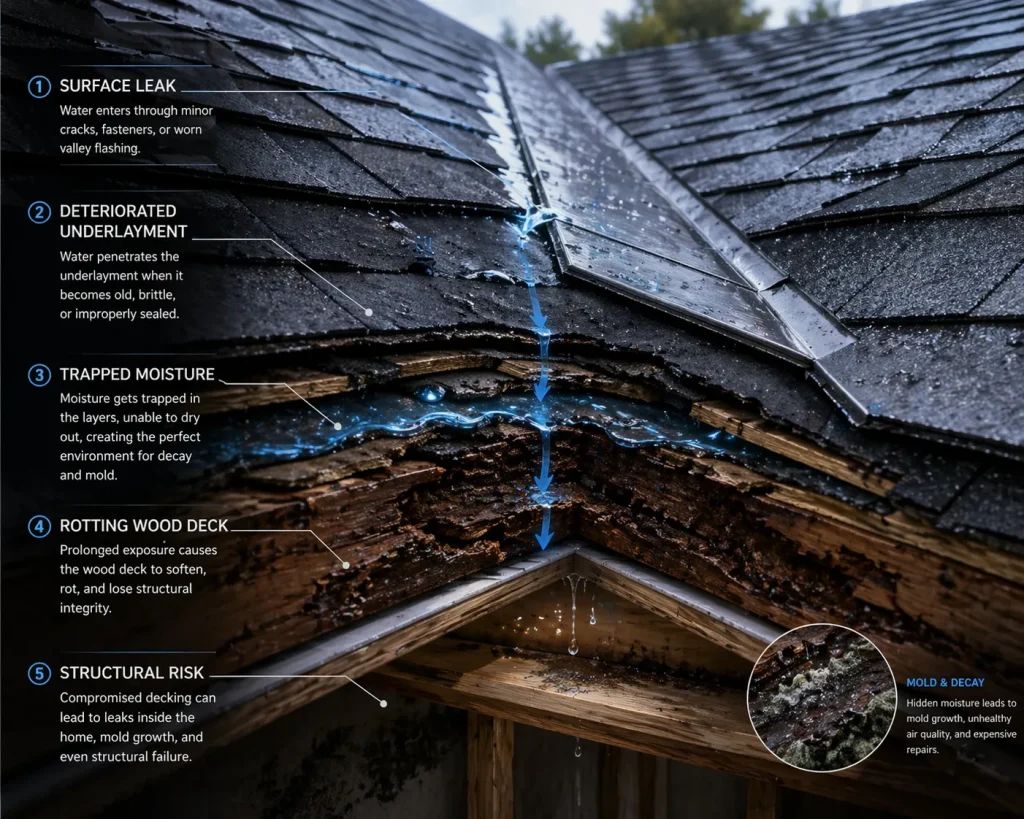

Water stains on ceilings or attic walls near roof intersections are a major warning sign, especially after heavy rain. Dripping water in these areas could mean the valley’s waterproof barrier has failed [3]. In closed or woven valleys, damage can be hidden beneath the shingles, where water may have reached the underlayment and started rotting the deck [1]. Even minor stains could signal saturated plywood, so it’s a good idea to have a professional check the roof deck for moisture.
Next, take a close look at the flashing and the surrounding shingles for visible damage.
Rust, Cracks, and Missing Shingles
In open valleys, inspect the exposed metal for rust or corrosion, particularly at overlapping seams [1]. High winds or hail can displace flashing and alter water flow, leading to potential leaks. For closed valleys, check the edges of the shingles for cracks or lifting, as these can allow water to seep underneath [1]. In woven valleys, watch for pressure ridges that might compromise the seal [1]. Additionally, keep an eye out for fasteners or screws in the valley’s central channel. These can act as weak points, especially when exposed to debris or ice [2].
Finally, make sure the valley is free of blockages.
Clogged Valleys
Debris like leaves, pine needles, and granules can collect in valleys, creating dams that block water flow [2]. The V-shaped design of valleys naturally traps debris, and if not cleared before winter, snow can compress it into a long-lasting moisture trap. Pine needles are especially problematic, as they can form dense mats that hold water against the flashing and accelerate corrosion [2]. Also, check where the valley connects to your gutter. If that exit point is clogged, water may back up into the valley instead of draining away.
"Valleys concentrate water volume… They also concentrate debris, and debris traps create temporary dams that force water to slow down, spread sideways, and back up." – Top Tier Metals [2]
When to Repair or Replace Roof Valley Flashing
Invest in a roof that delivers lasting value and dependable protection.
Once you’ve spotted damage, the next step is deciding whether to repair or fully replace the roof valley flashing. This choice hinges on how severe the damage is and whether there are deeper issues beneath the surface.
When Repairs Are Enough
Since roof valleys play a key role in channeling water, small, localized issues can often be fixed with a repair. For example, a seam displaced by a storm or a minor crack in the metal of an open valley can usually be addressed without much hassle [1]. Open valleys are particularly straightforward to repair because the flashing is exposed, so there’s no need to tear up shingles to access the problem.
However, take a close look at the valley center for any fasteners that could complicate the repair. Screws or nails placed directly in the water’s path can create persistent leak risks, which may call for more than a quick patch [2]. Repairs are only a viable option if the roof deck beneath is still solid and dry [1].
When Full Replacement Is Needed
If leaks are widespread, a full replacement is the safer option. For instance, leaks running along the entire valley often indicate that the underlayment has deteriorated or that the roof deck is waterlogged or even rotting. In these cases, replacing the entire valley is unavoidable [1]. Closed-cut or woven valleys present an additional challenge because the underlayment is hidden. Repairing it requires removing shingles, which often turns the project into a full replacement by default.
Another scenario requiring replacement is when incompatible materials were used in earlier repairs. For instance, mixing aluminum flashing with copper hardware can lead to galvanic corrosion, which will only worsen over time. In such cases, replacing the flashing with compatible materials is the only way to prevent further damage [1]. Lastly, if the roof is older, it’s worth considering a full valley replacement during repairs. The underlying ice-and-water barrier may already be nearing the end of its lifespan [1].
| Situation | Repair | Full Replacement |
|---|---|---|
| Damage Scope | Localized (e.g., one loose seam) | Systemic (e.g., leaks along the valley) |
| Valley Type | Open valley (exposed metal) | Closed-cut or woven (hidden flashing) |
| Roof Deck | Solid and dry | Rotting, soft, or water-saturated |
| Fastener Placement | Outside main water path | In the primary water flow path |
| Materials | Compatible metals | Mismatched metals causing corrosion |
Check out the next section for maintenance tips that can help extend your roof’s lifespan.
Roof Valley Flashing Maintenance Tips
Taking care of your roof valley flashing with consistent upkeep can help you avoid expensive repairs down the line [1]. These straightforward steps work alongside earlier repair advice to stop bigger problems before they start.
Inspect Your Roof Regularly
Check your roof valleys twice a year – once in the fall after the leaves have dropped and again in the spring after the snow has melted [2]. If you live in an area prone to storms or other risks, consider inspecting more frequently. Watch out for early warning signs like rust on metal flashing, cracked shingles along the valley edges, or water stains on ceilings near roof intersections. Roof valleys tend to collect debris because of their shape, and this can become a bigger issue when fall leaves build up and get trapped by winter conditions.
Remove Leaves and Debris
Debris in roof valleys can act like mini dams, slowing water flow and forcing it under your shingles [2]. Clear away leaves, pine needles, and other debris as soon as possible to prevent them from compacting or causing blockages. Pay extra attention to where the valley meets the gutter – clogged gutters can push water and debris back into the valley, leading to damage. Open valleys are easier to maintain since their smooth metal surfaces let debris slide off more easily, whereas closed or woven designs can trap leaves between shingle layers [2][4].
Fix Small Problems Quickly
Addressing minor issues right away can save you from more expensive repairs and keep your roof’s water drainage system working efficiently. Loose shingles or minor cracks can lead to deck rot if ignored [1]. Replace any missing shingles, treat rust spots before they become holes, and reapply sealant where it’s peeling [5]. Also, make sure the main water channel is clear of fasteners – nails or screws in this area are a common cause of persistent leaks [2].
Conclusion
Roof valleys play a crucial role in protecting your home by directing large amounts of water away from your roof and preventing leaks or structural damage [1]. Knowing the three main types – open, closed, and woven – can help you identify potential issues during inspections and better understand the maintenance your roof might need.
Common warning signs to watch for include water stains near intersections, rust or cracks in the metal, missing shingles, and debris buildup. Addressing these problems early can save you from costly repairs. For example, replacing a few shingles or treating rust spots is far less expensive than dealing with water-damaged decking or structural rot. Early action makes all the difference.
Regular inspections and cleaning are essential to keep your valleys clear and functioning properly [2]. If your home is surrounded by trees or experiences heavy snow and ice, more frequent checks are necessary. Also, avoid placing fasteners in the water channel, as these are a common cause of persistent leaks [2]. Staying on top of repairs and maintenance keeps your roof in good shape.
No matter the type of valley on your roof, ensuring water flows freely is key. Fix small issues right away, clear obstructions, and make sure water drains directly into the gutters [2]. With consistent care, you can extend the life of your roof and protect your home.
