Window crank handles might seem like minor hardware, but they play a big role in keeping your windows functional, energy-efficient, and secure. A well-maintained handle ensures smooth operation, proper sealing to reduce drafts, and added security by preventing unwanted access. On the other hand, a damaged or worn-out handle can make your window hard to operate, increase energy costs, and compromise safety.
Here’s what you need to know:
- When to Replace: Look for signs like difficulty turning, grinding noises, stripped splines, or visible damage such as cracks or corrosion.
- Choosing the Right Handle: Focus on material (metal like zinc or steel is best), grip style (long handles for leverage, folding handles for tight spaces), and compatibility (ensure proper spline size and fit for your window brand).
- DIY or Professional: Replacing a handle is simple with basic tools, but full crank set replacements may require professional help if internal gears are damaged.
Key Tip: Always match the spline size and bring your old handle or photos to the store to find the right fit. Regular lubrication can also extend the life of your hardware.
How to change window handle, replace casement window handle. Easy!
What Are Window Crank Handles?
Window crank handles are tools designed for manually opening and closing specific types of windows. They operate by moving the window sash along an internal mechanism. Typically mounted on the bottom sill of the window frame, these handles provide the leverage needed to swing heavier sashes with ease.
Window Types That Use Crank Handles
You’ll primarily find crank handles on casement windows and awning windows. Casement windows are hinged at the side and open outward horizontally, while awning windows are hinged at the top and open outward from the bottom. Both styles require a push-pull motion rather than the sliding action seen in other window types.
These window designs are popular in spaces where better airflow is needed or where traditional sliding windows would be inconvenient. As Emily Batdorf from Angi explains:
"Generally, you find casement windows in areas that would benefit from extra ventilation, like a bathroom, or places where it would be difficult to open a traditional window, like above the kitchen sink." [2]
Crank handles are also common for manual skylights, where reaching up to operate them by hand would be impractical.
Knowing how these handles work helps highlight their importance for these specific window styles.
How Crank Handles Work
Crank handles connect to the window’s internal mechanism through a toothed metal spline. When you turn the handle, it rotates the gears of a roto gear operator housed inside the window frame. These gears move a metal arm attached to the sash, either extending outward to open the window or retracting to close it. A set screw ensures the handle remains securely attached.
The spline size is critical for proper operation. Common sizes include 5/16", 11/32", 3/8", 9/32", and 1/4". Even a slight mismatch in size can disrupt gear engagement and smooth movement. For example, AmesburyTruth hardware often uses an 11/32" spline, while Andersen windows typically require a 3/8" spline [3]. Because these handles need to transfer force reliably, the connection between the handle and the operator must be precise and durable.
Signs Your Window Crank Handle Needs Replacement
Enhance indoor comfort year round with energy efficient window solutions.
Spotting issues with your window crank handle early can save you from expensive repairs down the line. Most handles give clear warning signs before they completely fail.
Problems During Use
A common indicator is when opening or closing your window becomes noticeably harder. If you find yourself using excessive force, it could mean the gears are worn or debris has built up in the mechanism. A gritty or grinding sensation while turning the handle also points to internal wear or accumulated dirt.
If the handle spins freely without moving the window sash, the internal splines or gears are likely stripped. At this stage, no amount of cleaning or tightening will fix the problem – it’s time for a replacement.
While operational issues are the most obvious signs, a closer look at the handle can reveal physical damage as well.
Physical Signs of Damage
Visible damage like cracks, bends, or corrosion is a clear sign of structural failure. Corroded metal, in particular, can make turning the handle increasingly difficult over time [1].
If the handle feels loose or wobbly, it might just be a loose mounting screw. However, if tightening doesn’t solve the issue, the handle itself likely needs replacing [1][5].
How a Bad Handle Affects Window Performance
A failing handle doesn’t just make operation difficult – it can also compromise your window’s overall performance. For instance, if the handle can’t fully close the sash, the window won’t seal properly. This can lead to drafts and higher energy bills [6]. In the case of casement or awning windows, often used in areas like bathrooms or over kitchen sinks for ventilation, a broken handle can completely cut off airflow.
There’s also a security risk. A window that won’t close or lock properly becomes an easy target for intruders. The table below outlines how different handle failures can impact both performance and security:
| Sign of Failure | Effect on Performance | Effect on Security |
|---|---|---|
| Stripped splines | Handle spins; sash doesn’t move | Window may remain stuck open |
| Grinding sounds | Operation becomes jerky and hard | May prevent window from locking |
| Loose or wobbly handle | Less leverage on heavy sashes | Can interfere with locking mechanisms |
| Cracked or corroded body | Total loss of window control | Leaves window unable to seal properly |
Forcing a stiff or malfunctioning handle can worsen the damage by stripping gears further or harming the operator inside the frame. What starts as a simple handle replacement could turn into a larger, more expensive repair [6].
Recognizing these signs early helps ensure your windows remain functional, efficient, and secure.
How to Choose the Right Window Crank Handle
After identifying signs of wear, it’s time to find a replacement handle that restores smooth, hassle-free operation. To make the right choice, focus on three key areas: material, grip, and compatibility.

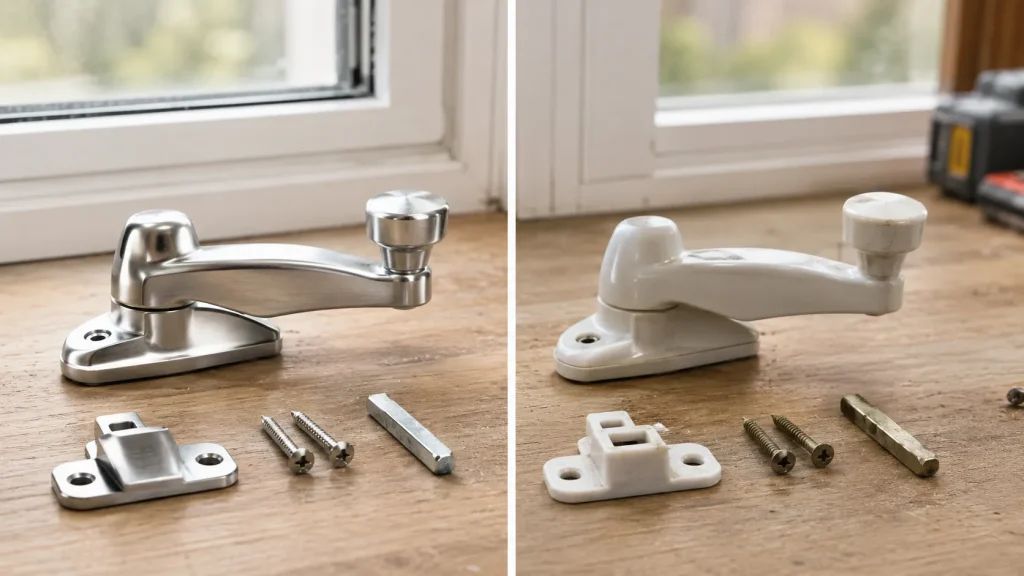

Material and Durability
The material of your crank handle plays a big role in how long it lasts. Die-cast zinc is a common option for casement and awning windows, offering a solid balance between strength and cost. Aluminum is another reliable choice, especially for areas like kitchens or bathrooms, as it resists corrosion. For heavy-duty use, steel provides superior strength and can handle more stress.
Plastic crank mechanisms, on the other hand, should be avoided. While plastic might work for decorative elements, it’s prone to cracking or stripping under pressure over time [4][3]. For added durability, look for metal handles with an electrostatic coating, which helps prevent wear and tear [4]. Some premium locking crank handles are even designed to handle sash weights up to 140 lbs [4].
Once you’ve settled on a durable material, think about how the handle will feel and function in everyday use.

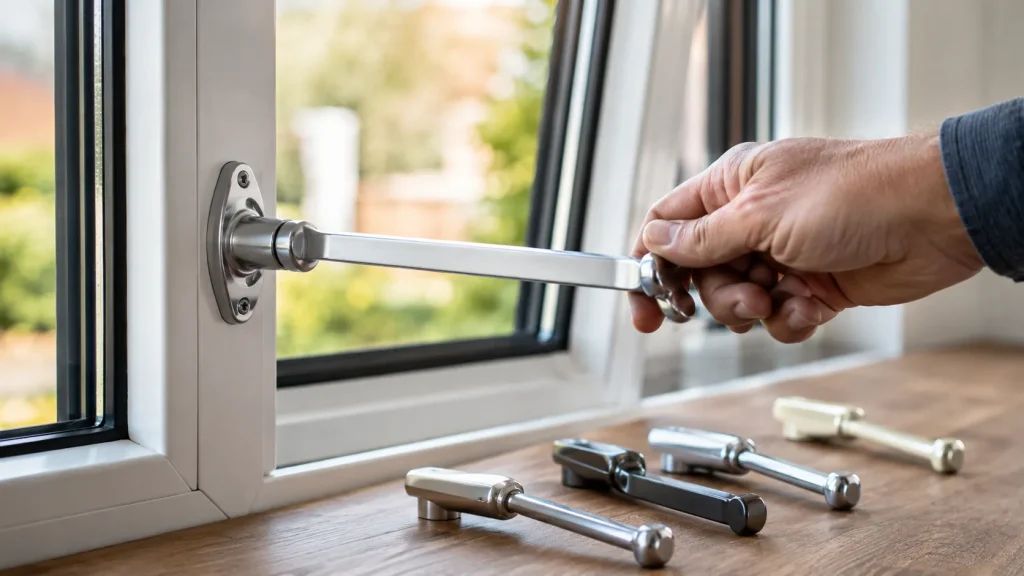

Grip and Design
The shape and style of the handle can make a big difference in comfort and usability. For instance, a long handle is a great pick for large or heavy casement windows, as it provides extra leverage. If you have blinds, shades, or shutters nearby, a folding (contour) handle is a smart choice since it folds flat to avoid getting in the way. For tight spaces or skylights, a T-handle (or butterfly handle) is compact and easy to grip.
Here’s a quick comparison of handle types and their benefits:
| Handle Type | Best For | Key Benefit |
|---|---|---|
| Long Handle | Large or heavy windows | Provides maximum leverage |
| Folding/Contour | Windows with blinds or shutters | Folds flat to prevent snags |
| T-Handle | Tight spaces or skylights | Compact and easy to grip |
| Hand Knob | Areas with very limited space | Minimal protrusion |
For windows with deep sills or screens, folding or T-handles are especially useful since they reduce interference.
Compatibility With Your Existing Windows
This is often where homeowners face challenges. To ensure a proper fit, start by checking the spline size of your existing operator. Common sizes include 5/16", 11/32", 3/8", 9/32", and 1/4" [3]. The spline size must match exactly for the handle to engage the gears correctly.
It’s also important to confirm compatibility with your window brand. Brands like AmesburyTruth, Roto, and Pella often use proprietary connection points, so even if a generic handle has the right spline size, it might not fit properly [4][3]. To avoid guesswork, remove your old handle and bring it with you when shopping.
"The easiest way to find a match is to bring your old handle to your local Ace. Our helpful staff can look at it and guide you to the right supplies for the job." – Ace Hardware [5]
If removing the handle isn’t possible, take clear photos of the handle and operator stem from multiple angles before heading to the store [2]. While some handles are labeled as "universal", always double-check the spline size and screw pattern before making a purchase [5]. By focusing on material, design, and compatibility, you’ll ensure your new handle works seamlessly and supports your window’s efficiency for years to come.
Repair or Replace: How to Decide
Once you’ve chosen the right handle style and ensured it’s compatible with your window, the next step is deciding whether a repair will suffice or if you’ll need to replace the entire crank set.
When a Repair Is Enough
Many crank handle problems are minor and can be fixed easily. For example, if the handle feels loose or wobbly, try tightening the mounting and set screws. If the handle is stiff, cleaning and lubricating the operator and hinges might solve the issue[1][5]. However, if these quick fixes don’t work, you’ll likely need to consider replacing the entire crank set[2].
When You Need a Full Replacement
Some problems go beyond simple repairs. If you hear a grinding noise when turning the handle, it’s a sign that the internal gears are stripped[2]. Similarly, a gritty or uneven rotation usually indicates worn-out internal parts[5]. A cracked handle is another clear sign that replacement is necessary. Additionally, if the window sash is sagging or bowing, the operator mechanism may also be compromised. In such cases, replacing the entire crank set – including the handle, cover, and operator arm – is the best course of action[7]. Addressing these issues promptly can save you from repeated troubles and extra expenses down the line.
Cost Breakdown
Here’s an estimate of what you might spend on parts:
| Part | Estimated Cost (USD) | Notes |
|---|---|---|
| T-Handle / Butterfly | $6 – $28 | Affordable and fits most standard splines |
| Standard / Contour Handle | $6 – $23 | Popular for traditional casement windows |
| Folding Handle | $13 – $60 | Great for windows with blinds or shutters |
| Full Operator Mechanism | $20 – $86 | Needed for issues like stripped gears or sagging sashes |
| Premium / Specialty Finishes | $150+ | High-end options, such as bright brass finishes |
If you hire a professional, labor costs typically range from $50 to $150 per hour, depending on your location and the complexity of the job[1]. For straightforward handle replacements, you can skip the labor costs by doing it yourself, leaving you to pay only for the part.
How to Replace a Window Crank Handle

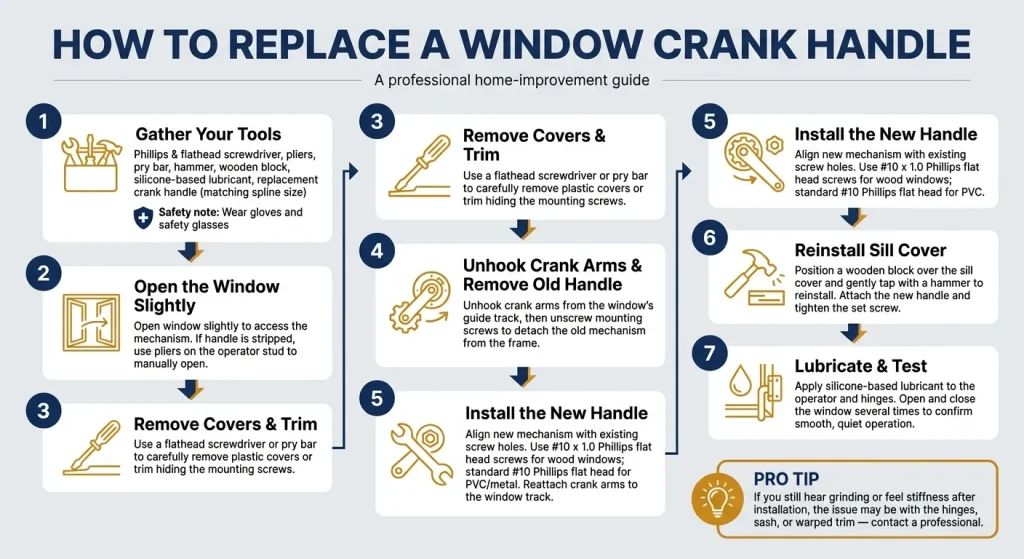

How to Replace a Window Crank Handle: Step-by-Step Guide
Replacing a window crank handle is a straightforward DIY task that most homeowners can tackle. With the proper tools and a compatible replacement part, you can restore your window’s functionality in no time.
Tools and Prep Work
First, gather your tools: a Phillips and flathead screwdriver, pliers, a pry bar, a hammer, a wooden block, and a silicone-based lubricant [1][2]. You’ll also need a replacement crank handle that matches the spline size and arm length of your existing hardware [3][5]. If you’re unsure of the size or brand, bring the old handle to a hardware store to find the right match. For safety, wear gloves and safety glasses to protect against sharp edges or debris during the process [1].
Removing the Old Handle
Once you’re ready, follow these steps to remove the old handle. Start by opening the window slightly. If the handle is damaged or stripped, use pliers to grip the operator stud and manually open the window [2]. Next, use a flathead screwdriver or pry bar to carefully remove any plastic covers or trim that might be hiding the mounting screws. Unhook the crank arms from the window’s guide track, then unscrew the mounting screws to detach the old mechanism from the frame [1][2].
Installing and Testing the New Handle
To install the new crank handle, align the mechanism with the existing screw holes and secure it using the appropriate screws. For wood windows, #10 x 1.0 Phillips flat head sheet metal screws are typically used, while PVC and metal casement windows require standard #10 Phillips flat head screws [1]. Reattach the crank arms to the window track and reinstall the sill cover by positioning a wooden block and gently tapping it with a hammer [2]. Finally, attach the new handle and tighten the set screw.
Before wrapping up, test the new handle. Apply a light silicone-based lubricant to the operator and hinges, then open and close the window several times to ensure smooth movement [1][2]. If the window feels stiff or you hear grinding noises, the issue might lie with the hinges, sash, or warped trim, in which case it’s best to contact a professional [2].
"Hiring a local window and door professional removes the guesswork from finding the right replacement crank and ensures proper installation for smooth operation." – Emily Batdorf, Contributing Writer, Angi [2]
Conclusion: Picking the Right Crank Handle for Your Home
Finding the perfect window crank handle comes down to three key factors: compatibility, material quality, and ease of use. A handle that doesn’t fit your window’s spline size or mounting pattern simply won’t work. Before buying, take the time to measure your current hardware, especially the stem shape and spline size (most commonly 3/8"). This step ensures you get the right match for your window.
When it comes to durability, zinc die-cast or stainless steel handles are a better choice than basic plastic ones. While they might cost more upfront, they often save you money in the long run by lasting longer and reducing the need for replacements.
Consider design features that suit your space. For example, a folding "contour" handle is ideal for windows near blinds or curtains, while a longer handle works well for larger windows. Some locking crank handles are even designed to support sash weights of up to 140 lbs [4].
"With a properly functioning crank, opening and closing your window should be pretty effortless." – Emily Batdorf, Contributing Writer, Angi [2]
Once you’ve installed the right handle, take steps to keep it performing smoothly. Lubricate the gears and moving parts every year with a silicone-based lubricant. This simple maintenance can extend the life of both the handle and the operator.
