If your motorized home window stops working, the switch may not be the part that failed. In many cases, the problem comes from power loss, loose wiring, moisture, sensor lockout, frame binding, or motor strain.
Here’s the short version:
- Replace the switch only if testing points to the switch
- If the window moves slowly, stops halfway, or grinds/clicks, the issue is often not the switch
- Many home systems run on 24V DC, so low voltage can make a window seem dead or weak
- If the window works from an app, remote, or manual override, but not the wall control, the switch or its wiring is the likely fault
- If the same control fails more than once, there is often a deeper issue behind the wall or in the window assembly
- A simple switch repair often costs around $100–$200, while motor or wiring work may run $300–$700 and full replacement can reach $1,000–$2,500+
I’d treat switch trouble as a test result, not a guess. Before buying parts, I’d check for three things: smooth window movement, dry trim/frame areas, and clean electrical contacts. If any of those are off, a new switch may do nothing.
A fast way to think about it:
| What I notice | What it often means |
|---|---|
| No response from one wall switch only | Bad switch or switch wiring |
| No response from every control | Power, breaker, wiring, or motor issue |
| Slow movement | Low voltage or drag in the window path |
| Stops midway | Sensor trip, binding, or overload shutoff |
| Grinding or clicking | Worn motor parts or debris |
| Trouble after rain | Moisture or rain sensor override |
In short, I’d only go with a switch-only fix when the window still opens, closes, and seals the way it should. If not, the problem is usually part of a larger window system repair.
Why a Switch Problem Often Points to a Larger Window System Issue
A motorized window only works when the whole setup works together: the switch, wiring, motor, track, and frame. If one part in that chain goes bad, the window can stop moving. And in a lot of cases, the switch takes the blame.
Symptoms that suggest the switch is not the only problem
These signs can help you tell the difference between a bad switch and a deeper system issue.
| Symptom | Likely Non-Switch Cause |
|---|---|
| Slow or labored movement | Low voltage at the motor or friction in the hinges |
| Stops midway through travel | Obstruction sensor activation |
| Grinding or clicking sounds | Internal gear wear or debris in the mechanism |
| Intermittent response | Loose wiring or corroded connections |
| Uneven closing or visible gaps | Frame misalignment or calibration drift |
| No response after rain or a storm | Rain sensor override or moisture intrusion behind trim |
When you see patterns like these, the issue is often resistance, wiring, or moisture, not just the switch.
Hidden causes homeowners often miss
The source of the problem is often behind the trim or inside the frame, not at the control itself. Corroded terminals are a good example. The switch face may look fine, but the contact behind it can build enough resistance to block the signal. Moisture behind the trim or a failed seal can cause that.
Debris in the track is another common culprit. It adds friction and makes the motor work harder than it should. Over time, that extra strain can trip the motor’s thermal protection, which may stop the window until the motor cools down.
Frame movement also gets missed all the time. A house can settle. Seasons change. Heat and humidity can shift a frame just enough to make the sash bind. When that happens, the motor may stall or shut off. From the homeowner’s point of view, it can look like the switch died halfway through the cycle.
A technician can isolate the motor and test it without the sash attached. That makes it easier to see whether the switch is the problem or just the part getting blamed.
Before you replace the switch, check whether the failure is tied to power, movement, or moisture.
What to Check Before Replacing the Switch
When the symptoms seem to go beyond a simple button issue, look at the window opening, the controls, and the wiring before you buy parts. The goal is simple: make sure the rest of the window system is working as it should before you swap the switch.
Red flags around the control and window opening
Start with the stuff you can spot right away – and even smell. Watch for sparks, arcing, burning smells, smoke, soft drywall or trim, water stains, mold, white or green corrosion on contacts or terminals, and wire insulation that looks discolored or melted [1][2][3].
Some signs point away from the switch altogether. Condensation between panes or gaps when the sash is fully closed usually mean the window itself has a problem, not the switch [4][2]. If you notice any of these warning signs, stop at inspection and move to testing.
What a remodeler or technician typically tests
If the window works from another control but not from the wall switch, the problem is likely in the control signal rather than the motor [1]. If there’s no sound and no movement, check power, wiring, terminals, and the breaker before replacing the switch [1][3].
At that point, a multimeter can show whether the actuator is getting the right voltage. Many motorized window systems run on 24V DC, and low voltage can make the window move slowly or cut in and out, which can look like a bad switch [1][4].
A technician may also disconnect the actuator from the window frame to see if it runs normally without the load [1]. That’s a simple way to tell whether the issue is electrical or if something is binding. Debris in the tracks, bent arms, or frames that are out of line can trip overload protection and make it seem like the switch failed [1][3].
Here’s the usual split between DIY checks and technician testing:
- Homeowner checks: visual inspection, track cleaning, power cycle, battery replacement
- Professional checks: voltage test, no-load actuator test, moisture detection, limit calibration
Homeowner checklist before choosing a repair path
Before you pick a repair path, answer a few basic questions. Does the window close evenly, with no visible gaps? Is the problem tied to one control, or does the whole system seem dead? Do you see moisture, soft trim or wall material, or corrosion nearby? Has the same control failed more than once?
That last one matters. If the same control keeps failing, there’s probably a deeper electrical or mechanical issue behind it.
Take photos of any stains, corrosion, or visible gaps, and write down when the problem started. That small bit of prep can speed up diagnosis and may save you from paying for a switch replacement that won’t fix the actual cause.
Use these checks to figure out whether the fix is just the switch or part of a larger window repair.
When a Switch-Only Repair Is Enough and When It Is Not

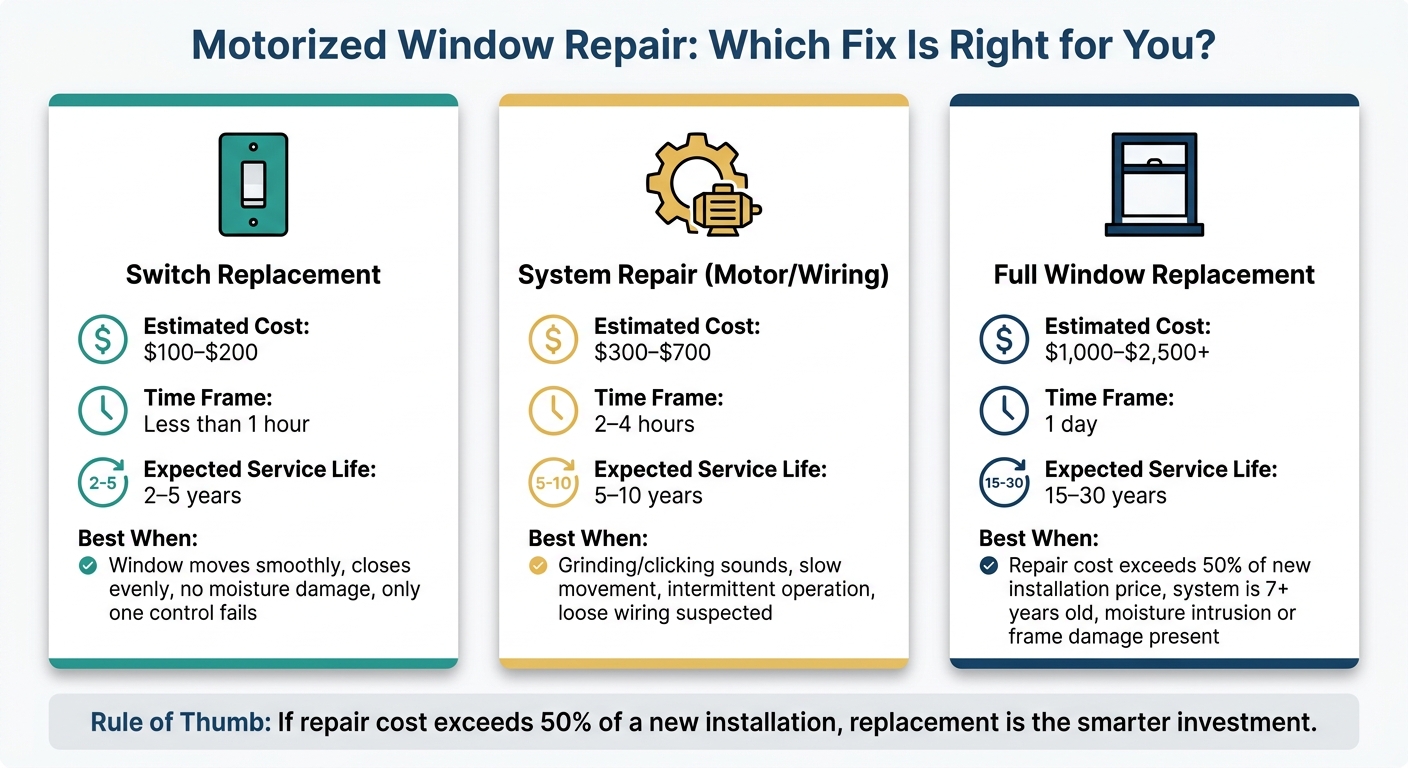

Motorized Window Switch Problem: Repair Options Compared by Cost, Time & Lifespan
If your checklist shows smooth movement, even closing, and no moisture or visible damage, replacing the switch may be all you need.
Cases where window switch replacement is the right call
A switch replacement makes sense when the control has failed but the window itself still works the way it should. That means it moves smoothly, closes evenly, and shows no signs of moisture trouble or frame damage. If the window responds through a manual override or smart app, but not through the wall switch, the switch is the most likely problem [1][3].
It also helps to check the simple stuff first. Test any battery-powered remote or keypad before you buy parts, since weak batteries can look a lot like a bad switch [3][5].
Signs a new switch will not solve the real problem
Sometimes the switch looks guilty, but the pattern says otherwise.
If the window grinds, clicks, or moves slowly, the issue usually points to the motor, wiring, or track, not the switch. Grinding and clicking often mean internal gear wear or stripped parts. Slow movement usually links back to low voltage or too much friction in the tracks [1][3].
Intermittent operation can be another clue. If the window works one day and fails the next, loose wiring or an unstable power supply is often the cause, not the control itself [1]. And if the window leaves a gap when closed or doesn’t press the weather stripping evenly, the problem may be frame shifting or incorrect stroke calibration [1].
Switch replacement now versus broader window work later: comparing costs
A switch replacement gives you the most for your money only when the rest of the system is in good shape. If there’s moisture, wiring trouble, or signs of motor strain, it’s smarter to look at the whole window instead of treating one part in isolation.
A useful rule of thumb: if the cost to repair an older motorized system is more than 50% of the price of a new custom installation, replacement is usually the better money move [6]. Once a system is about seven years old, electronic parts can become brittle or obsolete, which makes a full upgrade more practical than replacing one piece at a time [6].
| Option | Estimated Cost (U.S.) | Time Frame | Expected Service Life |
|---|---|---|---|
| Switch Replacement | $100–$200 | Less than 1 hour | 2–5 years |
| System Repair (Motor/Wiring) | $300–$700 | 2–4 hours | 5–10 years |
| Full Window Replacement | $1,000–$2,500+ | 1 day | 15–30 years |
Switch replacement works best as a focused fix. If the window also has leaks, drag, or uneven closing, it usually makes more sense to step back and assess the whole system [2][6].
Final Takeaway: Fix the Switch Without Missing the Real Cause
A switch repair only makes sense when the switch is the only part that failed. Before you swap it out, check three things: the switch should move smoothly, the framing should be dry, and the electrical contacts should be clean. If any of those look off, the issue is likely bigger than the switch itself.
Loose wiring and poor connections often lead to on-and-off failures. In that case, putting in a new switch won’t solve the electrical problem sitting behind the wall. What looks like a dead switch often ends up being a wiring fault. That’s why how the issue shows up matters just as much as the symptom.
If one window fails once, but it still opens, closes, and seals the way it should, the switch is the most likely cause. But if the same problem keeps coming back, or you can see moisture, start looking at the whole system.
If the pattern still isn’t clear, test the control directly. Start with the motor-head control or manual override. If that works but the wall switch does not, the fault is in the switch or the wiring. If nothing moves, check for power first, then trace the circuit from there.
Replace the switch when it’s clearly the failed part. If the window keeps having performance issues, inspect the full window system instead.
