A picture window can look great on paper and still go wrong if the frame and opening are weak. I’d check the frame before I think about size, style, or glass, because windows can drive 25% to 30% of a home’s heating and cooling use, and a bad install can cut light, trap water, and add repair costs.
Here’s the short version:
- I’d inspect the sill, corners, and trim for rot, stains, drafts, and fogged glass
- I’d avoid an insert if the old frame is not solid, square, and dry
- I’d remember that insert replacements can cut visible glass by about 1 inch per side, which may reduce light by 15% to 20% in a small opening
- I’d make sure large picture windows get a header check, especially if the opening is being made larger
- I’d compare frame materials based on strength, upkeep, insulation, and cost
- I’d make sure the quote lists flashing, low-expansion foam, trim work, glass specs, and cleanup
- I’d plan the frame with the whole room, including view height, sun exposure, and trim lines
A few cost and performance points stand out. Large picture windows often land around $1,000 to $2,000+ installed for a 5 ft. x 5 ft. unit, while custom sizes can reach $2,500+. Moving from vinyl to fiberglass or wood-clad can add about 30% to 60%. And switching from old single-pane units to double-pane Low-E glass can cut energy use by about 40% to 50%.
How to Replace a Picture Window | Ask This Old House
Quick Comparison
| Topic | What I’d watch for | Why it matters |
|---|---|---|
| Existing frame | Rot, leaks, out-of-square opening | New window won’t fix hidden damage |
| Insert vs. full-frame | Loss of glass area vs. opening repair | Affects light, fit, and repair scope |
| Large window support | Header size and wall load | Helps stop sagging and seal problems |
| Frame material | Vinyl, fiberglass, wood frame windows, aluminum, composite | Changes cost, strength, and upkeep |
| Sealing | Flashing, foam, caulk, finish work | Poor sealing leads to drafts and water issues |
| Quote details | U-factor, SHGC, trim, flashing, cleanup | Helps avoid extra charges later |
If I were planning this job, I’d treat the frame as the first decision, not the last. That one step shapes the view, the daylight, the finish, and how the window holds up over time.
What Homeowners Miss When Checking the Existing Frame
A window can look fine from the living room and still hide rot, leaks, or movement behind the trim. That’s the part many homeowners don’t see. Before picking a frame size or style, check what’s going on inside the opening.
Signs the Frame Area May Have a Problem
Start with a simple test: press a flathead screwdriver into the exterior sill and the lower corners. If it sinks in or the wood starts to crumble, that frame has rot [4].
You should also watch for water stains on the wall or floor right below the window, peeling paint near the casing, and fog between panes. That fog means the insulated glass unit seal has failed [1][7]. Drafts around the interior trim are another red flag.
| Sign | Likely Cause | What to Do |
|---|---|---|
| Fog between panes | Failed glass unit seal | Replace the insulated glass unit [1][7] |
| Soft or crumbling wood | Advanced rot | Full-frame replacement [4] |
| Drafts around interior trim | Poor air sealing | Remove trim and seal the gap [4] |
| Stains below the window | Flashing or sealant failure | Inspect exterior flashing and drainage [1][4] |
If you spot any of these, pause the design talk for a minute and inspect the opening itself.
Why Large Fixed Windows Need a Structural Review
Large picture windows put a lot of load on the header, which is the beam across the top of the opening [1][5]. If that header is undersized or starting to sag, the window can move out of square. When that happens, gaps become uneven and seals can fail [1][5].
This becomes a bigger issue when a homeowner wants to enlarge the opening. A wider span may need a stronger header to support the wall above [1][5]. That’s not just about looks. It’s a structural call. Once the opening can handle the load, then the frame choice can focus on the view.
When Repair Should Come Before Design Changes
Repair needs to come first when the existing opening has damage.
"Do not cover rot with an insert; it traps the damage behind new glass." [1]
An insert-style replacement works only if the existing frame is solid, square, dry, and free of active leaks. If there’s rot, active water intrusion, or a frame that has shifted out of square, the window needs a full replacement down to the rough opening. That makes room to replace damaged studs, install new flashing, and seal the gap the right way [4].
After the opening is sound, you can turn your attention to size, material, and trim.
How Window Frame Picture Size, Proportion, and Material Change the Result
Window Frame Materials Compared: Cost, Durability & Maintenance
Once the opening is in good shape, the next call is the frame. It changes the view, the sense of scale, and how much work the window will need over time.
Thin vs. Thick Frames and How They Change the View
Frame profile decides how much glass you actually see. Slim profiles leave more of the glass exposed, so the view feels more open and the room gets more natural light without needing a bigger rough opening [3][7]. Insert or retrofit installs do the opposite. They put a new frame inside the old one, which cuts down visible glass around the edges [4].
If you want more light and a cleaner sightline, a full-frame replacement keeps more visible glass than an insert installation.
With a picture window, even a small change in frame width can shift how open the view feels. And when the unit gets large, frame strength starts to matter more. Big fixed windows often need stiffer materials, like fiberglass, to stay square [1][3].
| Feature | Slim-Profile Frame | Thick/Standard Frame |
|---|---|---|
| Visible glass area | Maximized; cleaner view | Reduced; more visual obstruction |
| Daylight | More natural light | Less natural light |
| Visual weight | Light, modern, architectural | Heavier, traditional, or structural |
| Style fit | Contemporary, minimalist | Traditional, Craftsman, Colonial |
| Performance tradeoff | May require stronger materials like fiberglass | Often more affordable in standard vinyl |
After profile, material becomes the next big piece, because frame size and frame stiffness go hand in hand.

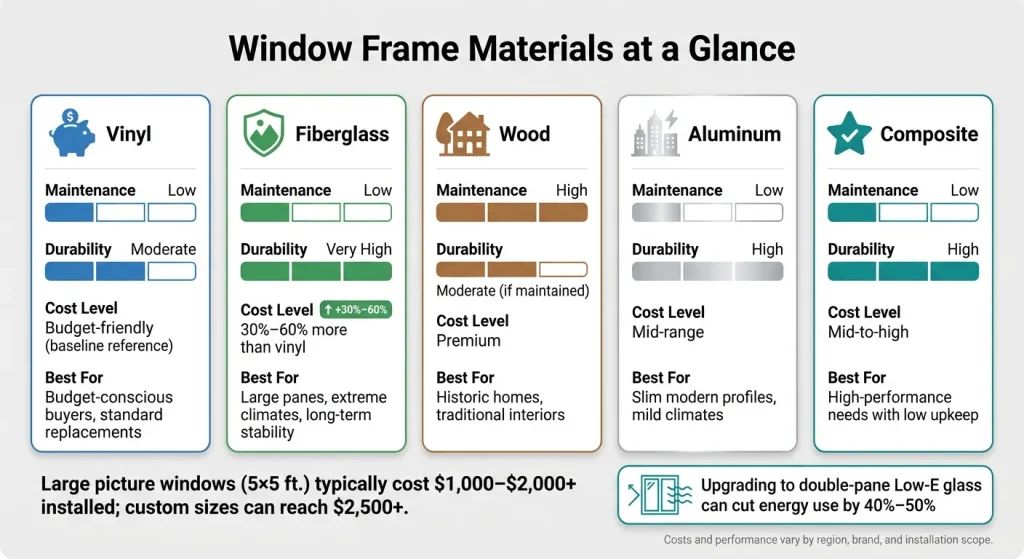

Common Frame Materials and What They Mean for Upkeep
The material affects more than looks. It also shapes upkeep, insulation, and service life.
Vinyl is one of the most budget-friendly options and needs little maintenance [1][2]. Fiberglass costs more – usually 30% to 60% more than vinyl – but it has the strength large, heavy panes need [1]. Wood gives you that warm, classic look, but it needs regular care to help prevent rot [1][2]. Aluminum can create very slim frames, which is great for a clean look, but it does not insulate well unless it has a thermal break [1][7]. Composite sits in the middle, pairing good thermal performance with low upkeep [2].
| Material | Maintenance | Durability | Best Use |
|---|---|---|---|
| Vinyl | Low | Moderate | Budget-conscious, standard replacements |
| Fiberglass | Low | Very high | Large panes, extreme climates, long-term stability |
| Wood | High | Moderate (if maintained) | Historic homes, traditional interiors |
| Aluminum | Low | High | Slim modern profiles, mild climates |
| Composite | Low | High | High-performance needs with low upkeep |
Find window solutions designed to enhance appearance and everyday comfort.
Matching the Frame to the Room and Exterior
After you pick the profile and material, step back and look at the frame from both sides of the wall. A window can look just right from the couch, then feel too heavy or out of scale from the street. That tends to happen when the frame does not line up well with the siding, nearby windows, or exterior trim.
"In larger spaces like living rooms or open dining areas, a big picture window brings in natural light and creates a visual focal point. In smaller rooms, oversized windows can feel out of place." – Eric Bramlett, Owner, Bramlett Real Estate [6]
Color, depth, and trim all matter here. When those pieces line up, the window feels like it belongs there from day one, not like something that was squeezed in later.
Once the frame is sized and matched to the home, the installation details decide whether it stays that way.
Installation Details That Protect the Window Opening
Even a solid frame can fail if the opening is measured wrong or sealed badly. Bad measurements, skipped flashing, and rushed finish work can turn a good window into a problem.
What Remodelers Should Check Before Installation
Before installation, the rough opening needs to be square, level, plumb, stable, and sized for the frame. If the opening is off, trim lines can look uneven. With large picture windows, the header above the opening also has to be sized to carry the wall load above it [5][1].
Wall thickness matters too. A thicker frame can force changes to the interior casing. Checking that before ordering the unit can save extra work later.
Once the opening clears those checks, the frame choice comes down to fit, sealing, and cost.
Problems Caused by Poor Sealing and Finish Work
Water intrusion is the main cause of window failure [5]. If sill-pan flashing and self-adhesive flashing tape aren’t tied into the home’s water barrier, even a small gap can let moisture move into the wall cavity over time. A 1/4-inch measurement error can weaken insulation and create drafts [5].
Gaps between the frame and studs should be filled with low-expansion spray foam [1][4]. Skip that step, and you may end up with cold edges or condensation around the frame perimeter in winter.
Finish work can cause trouble too. Uneven trim, fasteners driven too tight, and gaps in exterior caulk can change both how the installation looks and how it performs.
After the install details are locked in, the next issue is simple: where does extra spending make a difference?
Related Guides for Repair, Materials, and Installation
If the opening has damage or the quote leaves loose ends, the repair, materials, and installation guides can help with the next step.
Once the opening is sealed and finished the right way, the next call is whether the upgrade is worth the added cost.
Cost, Whole-Room Planning, and Quote Checks
Where Spending More on the Frame Often Pays Off
Once the opening is sound and sealed, the next call is simple: cost vs. performance.
This is one of those places where going cheap can come back to bite you. If you cut corners on sealing, frame material, or repair work around the opening, you often end up paying more later. And with large fixed windows, the glass does a lot of the heavy lifting because that big glass area affects both heat loss and heat gain.
Upgrading from older single-pane windows to double-pane Low-E systems can lead to about 40% to 50% energy savings [3]. If there’s rot, though, an insert isn’t enough. Rot means full-frame replacement.
For large picture windows, installed prices usually fall between $1,000 and $2,000+ for 5 ft. x 5 ft. units, while custom or oversized units can hit $2,500 or more [1][6]. If you move from vinyl to fiberglass or wood-clad, expect the frame cost to climb by about 30% to 60% [1].
Why the Frame Should Be Planned With the Whole Room
After the budget is set, the window needs to match how the room actually works. A picture window doesn’t sit in isolation. It changes the feel of the whole space.
A good place to start is sightlines. In a family room, seated views matter most. In a dining area or hallway, standing height matters more [3]. Get that wrong, and the window can slice right through the best part of the view, even if the install itself looks clean.
South- and west-facing windows also need heat and glare control baked into the plan. For rooms that take strong afternoon sun, it makes sense to specify a Solar Heat Gain Coefficient (SHGC) of 0.25 or lower [1][3]. Before the window is ordered, line up the trim details too, including interior trim color, casing width, and how the frame will meet the exterior siding [2].
Once the room layout is settled, the quote should match the exact job scope.
The Checks That Prevent Window Frame Regret
Before you sign off on any quote, make sure it spells out:
- The frame material
- The exact glass package, including U-factor and SHGC
- The installation method
- Any tempered glass needs [1]
The scope should also list sill-pan flashing, self-adhesive flashing tape, low-expansion foam, interior casing, exterior trim, siding transitions, and cleanup [5][4][2]. If those items are missing, there’s a good chance they show up later as change orders.
It’s also smart to verify that the sill is solid and dry before approving an insert. And check the insulated glass seal warranty. For large fixed panes, a 10- to 20-year seal warranty is a good benchmark, since these units are more likely to deal with seal failure and fogging as the years pass [1][7].
